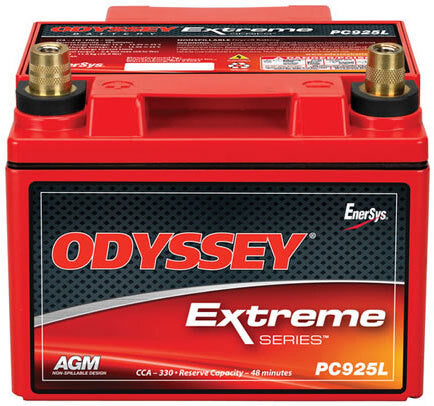

Odyssey ODPC925LMJ Battery 925Ljt 380Cca

Some batteries offer enormous cranking power. Others, deep cycle reserve power. Unbeatable ODYSSEY® Extreme Series™ batteries do both. Even at very low temperatures, ODYSSEY Extreme Series batteries have the power to provide engine - cranking pulses in excess of 2250 amps for 5 seconds - double to triple that of equally sized conventional batteries. And they can handle 400 charge - discharge cycles to 80% depth of discharge.

ODYSSEY Extreme Series batteries are made with flat plates made of 99% pure lead - not lead alloy, like many conventional batteries. Pure lead plates can be made thinner, so we can fit more of them in the battery. More ODYSSEY battery plates mean more plate surface area. And that means more power - twice as much as conventional batteries.

Like many popular spiral - wound batteries, ODYSSEY Extreme Series batteries employ dry cell Absorbed Glass Mat (AGM) technology to contain acid, allowing the battery to be installed even on its side. But the densely packed flat plates in an ODYSSEY Extreme Series battery avoid the "dead space" between cylinders in a "six pack" design. The result is 15% more plate surface area - and that translates to more power!

Battery Specifications
Model: PC925LMJ
Voltage: 12 Volt
Pulse (5 second) Hot Cranking Amps (PHCA): 900
Cold Cranking Amps (CCA): 330
HCA: 610
MCA: 480
20Hr Nominal Capacity (Ah): 28
10Hr Nominal Capacity (Ah): 27
Reserve Capacity Minutes: 48
Terminal: Left positive (SAE brass automotive posts with 3/8 inch threaded recpectacle)
Torque Spec in-lbs (Nm max): N/A
Internal Resistance: 5
Short Circuit: 2400

Dimensions
Length: 168 mm
Width: 180 mm
Height (terminals included): 147 mm
Height (container): 127 mm
Weight: 11.5 kg
