Product Information

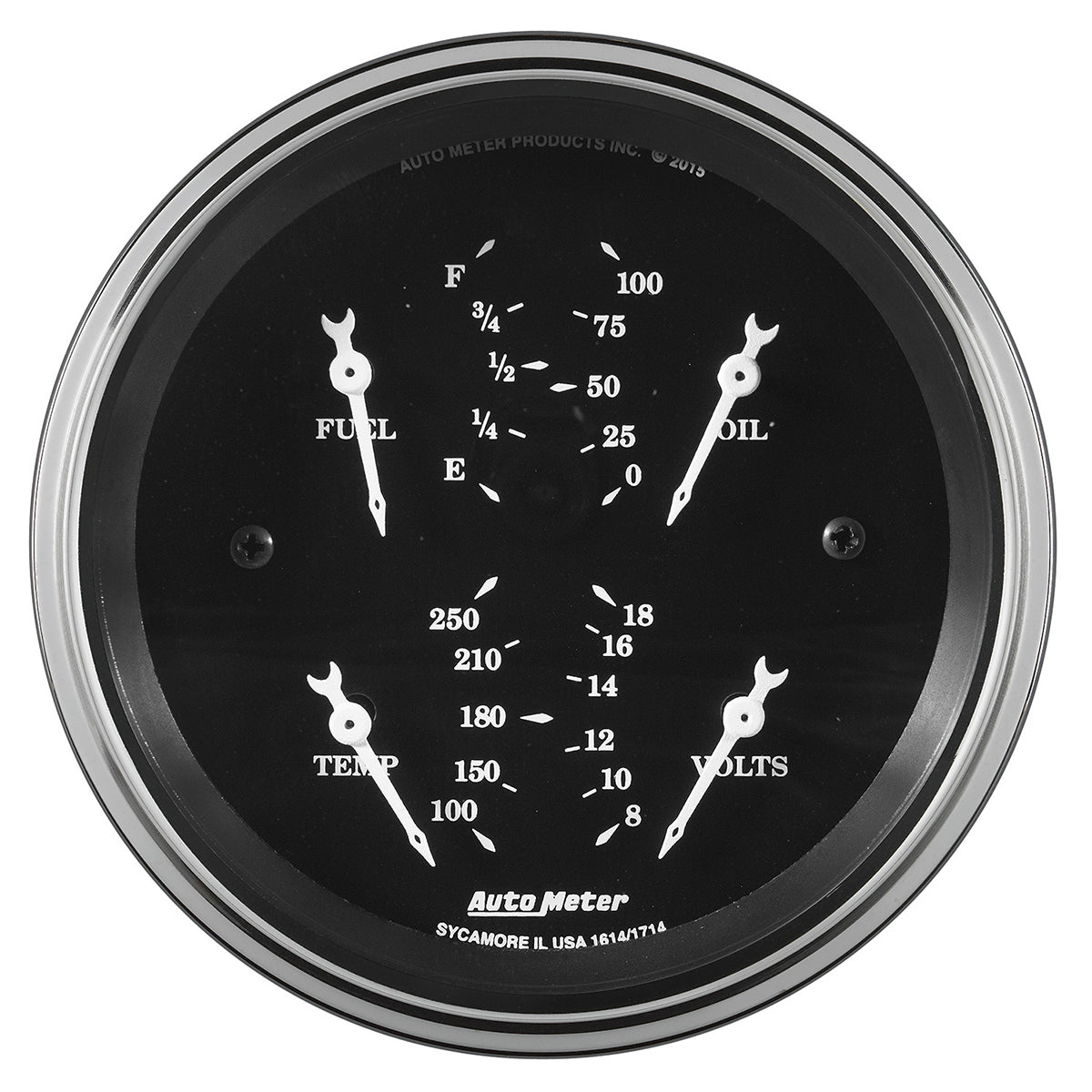

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8� NPT temperature sender and a 1/8� NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Product Information

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8� NPT temperature sender and a 1/8� NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Technical Information

Features
• Highly polished chrome bezel
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• Gauge kit includes 1/8 NPT pressure sender, 1/4 NPT adapter, 1/8 NPT temperature sender, 3/8 and 1/2 NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074017131
Our Part Number
AU1713
Related Item: 2160, BEX-1500, EP-800, 0423XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: OLD TYME BLACK
Dial Color: Black
Lens Style: Domed, Clear
Bezel Color: Chrome
Bezel Style: Street Rod
Size - Metric - MM: 85.7mm
Size - Standard - IN: 3-3/8"
Cup/Hole Size - Metric - MM: 85.7mm
Cup/Hole Size - Standard - IN: 3-3/8"
Outer Bezel Diameter - Standard: 3-3/8"
Outer Bezel Diameter: 3-3/4"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: White
Movement: Electric, Air-Core
Gauge Type: Quad Gauge
Range: 100 PSI/100-250 °F/8-18V/240OE-33OF
Includes Sensor Unit: Oil Sender 2242 - Water Sender 2258
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
Includes Bulb & Socket: 3211
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: Bracket Included
Cross Sell: 3262, 3263, 2282, 2268, 2277, 3288
Upsell: 3262, 3263, 2282, 2268, 2277, 3288
