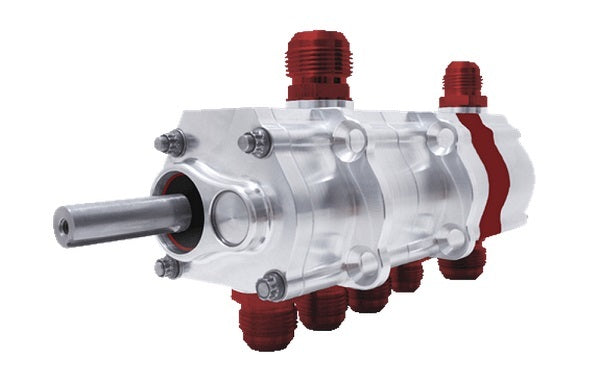

Peterson PFS04-3000 R4 3 Stage Dry Sump Pump Suit L/H Mount 1.200" Scavenge 1.200" Pressure STD Pressure

R4 3 Stage Dry Sump Pump Suit L/H Mount 1.200" Scavenge 1.200" Pressure STD Pressure

Skip to product information
1 of 2
Peterson Fluid Systems Part No. PFS04-3000
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:PFS04-3000

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Dry Sump Oil Pumps

Our Dry Sump Pumps are built around our Patent Pending 4 lobe rotor which provides excellent oil pressure and flow in excess of 30 GPM on the High Volume pump for the highest need motors. The 4 lobe rotor also provides excellent vacuum to free up horsepower in the engine.

3 Stage R4 Standard Dry Sump Pump

This is the base pump in the R4 line but that doesn't mean it doesn't perform amazingly. It fits most applications with it's 1.2" wide scavenge and pressure rotor. A 1.4" thick pressure rotor is available for engines that require higher oil flow such as aluminium blocks that are also running aluminium rods or iron block motors that are running multiple oiling accessories such as valve train sprayers and wrist pin oilers. Comes with an integrated mount that can be attached to any of our block mount plates. We can also machine custom plates or make your own for custom applications.



Product Information

Dry Sump Oil Pumps

Our Dry Sump Pumps are built around our Patent Pending 4 lobe rotor which provides excellent oil pressure and flow in excess of 30 GPM on the High Volume pump for the highest need motors. The 4 lobe rotor also provides excellent vacuum to free up horsepower in the engine.

3 Stage R4 Standard Dry Sump Pump

This is the base pump in the R4 line but that doesn't mean it doesn't perform amazingly. It fits most applications with it's 1.2" wide scavenge and pressure rotor. A 1.4" thick pressure rotor is available for engines that require higher oil flow such as aluminium blocks that are also running aluminium rods or iron block motors that are running multiple oiling accessories such as valve train sprayers and wrist pin oilers. Comes with an integrated mount that can be attached to any of our block mount plates. We can also machine custom plates or make your own for custom applications.



Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Peterson Fluid Systems
MPN
Not provided
UPC
Not provided
Our Part Number
PFS04-3000

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Peterson Fluid Systems

Peterson Fluid Systems products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
