LS6098945 - Pro LS 4340 Forged Steel H-Beam connecting rod, 6.098 in. length, .945 pin, ARP 2000 7/16 12 pt. rod bolts, full floating, stroker clearanced, LS1

Item Description

LS6098945 - Pro LS Connecting Rods

UPC:  190861235496

Connecting Rod Length Centre to Centre:  6.098 in.

Connecting Rod Beam Style: H-beam

Connecting Rod Material: Forged 4340 Steel

Wrist Pin Style: Floating

Pin End Bore Diameter: 0.945 in.

Rod Journal Diameter:  2.100 in.

Big End Bore Diameter: 2.2250 in.

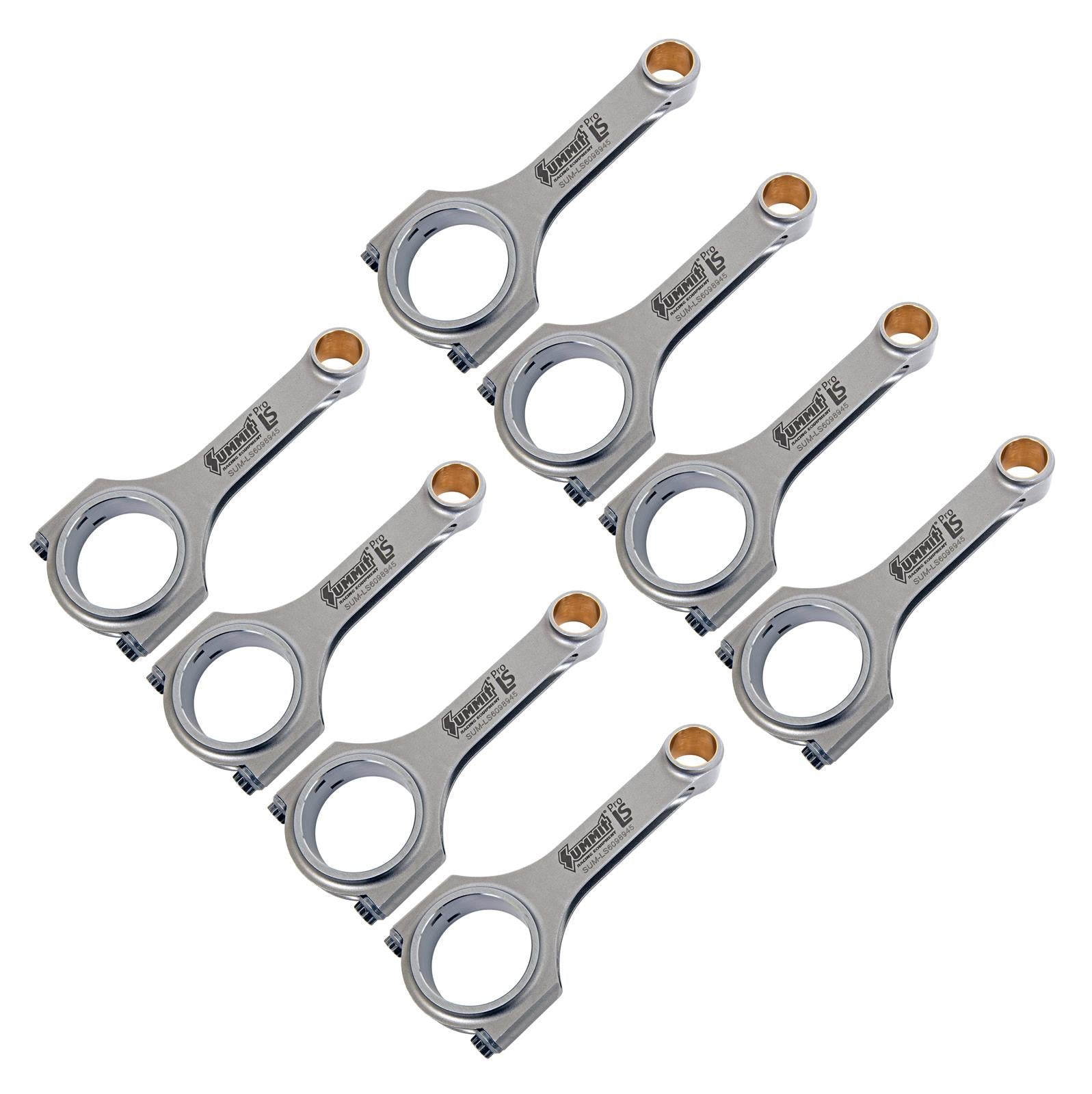

Quantity: Sold as a set of 8

Cap Retention Style: Cap Screw

Big End Width: 0.940 in.

Clearanced for Stroker: Yes

Connecting Rod Bolts: ARP2000 Alloy 7/16 Bolts

Connecting Rod Bolts Style and Strength: 12 Point (200,000psi)

Approximate Conrod Weight: 655g

Advertised HP Rating:  1200hp

Advertised RPM Rating:  7500rpm

Pin End Width: 1.010 in.

Weight Matched Set: Yes

Magnafluxed: Yes

Connecting Rod Colour:  Shot-peened and tumbled

Notes: For use with full-floating Spiralock equipped aftermarket pistons with .945 pin diameters. Not for use with 2005+ .943 pin pistons. Correct zero offset.

  • 800hp Rating Circle Track
  • 1000hp rating Supercharged or Nitrous Drag
  • 1200hp Rating Turbocharged
  • 4750 fpm piston speed

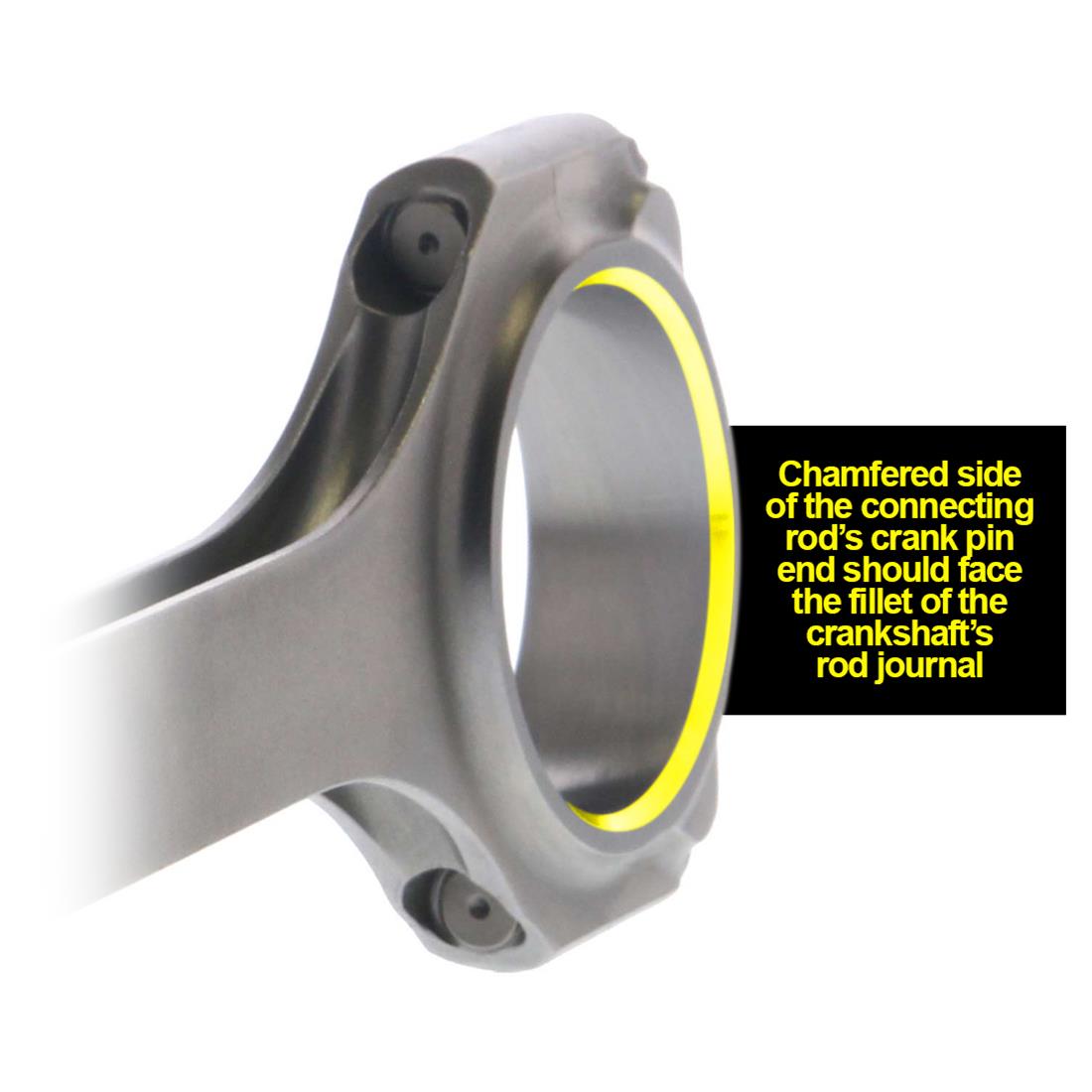

Special Attention: The large chamfer on the big end of the rod MUST be facing the fillet of the crank's rod journal.











Manufacturer Information

  • Manufacturer: Engine Master
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
