Proflow PFETBP4150B Fuel Injection Conversion Plate Kit Series II 4150 & 4500 Billet Aluminium Black Universal

Fuel Injection Conversion Plate Kit Series II 4150 & 4500 Billet Aluminium Black Universal

1 2
Proflow
Proflow Part No. PFETBP4150B
$395.70 AUD
$395.70 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

PFETBP4150B

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

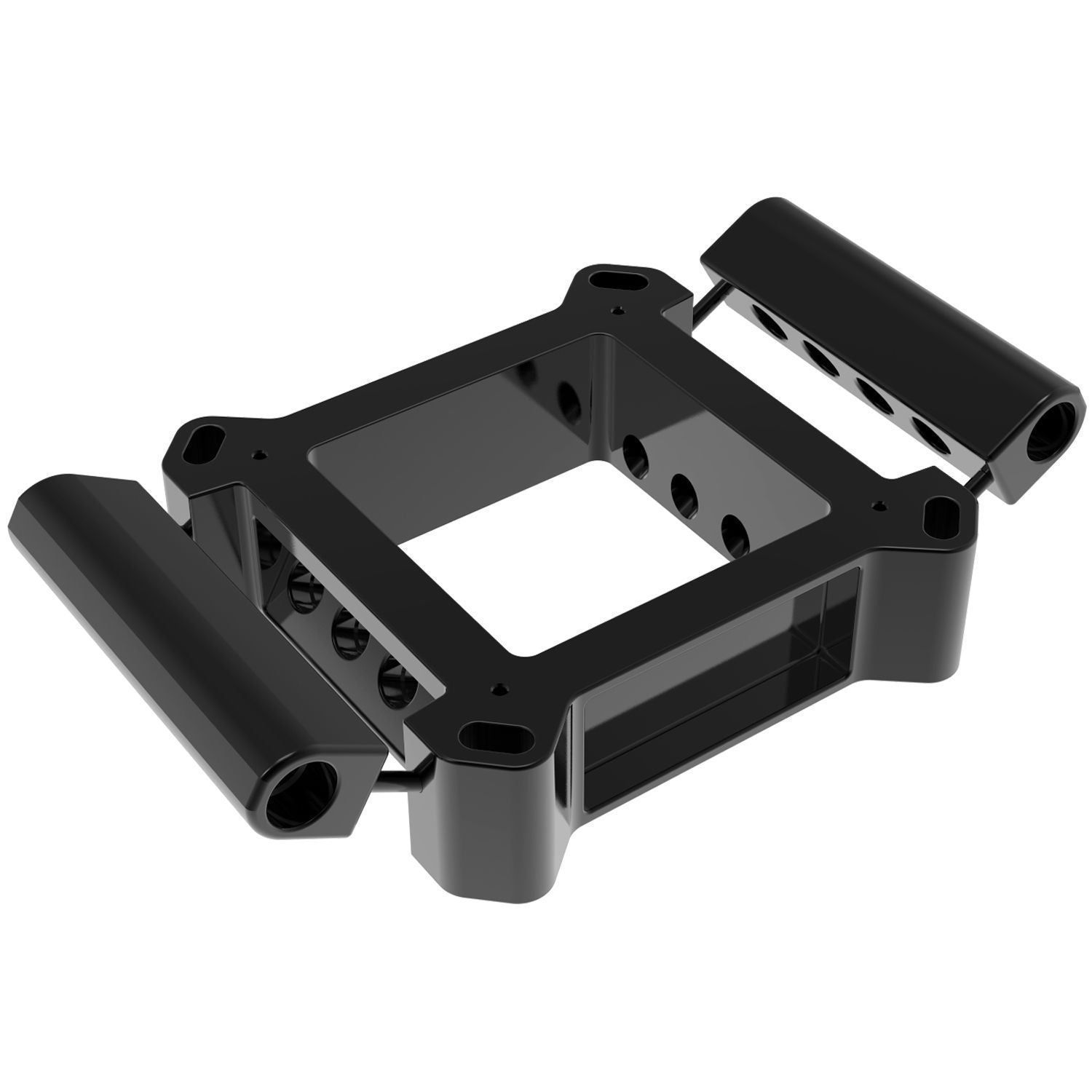

PROFLOW PFETBP4150B EFI CONVERSION FUEL INJECTION PLATE WITH FUEL RAILS BLACK
Proflow’s EFI conversion Fuel Injection Plate is an innovative way to convert your engine to EFI without needing to spend thousands of dollars. Proflow’s Fuel Injection Plate eliminates the need to replace or modify your non-EFI intake manifold, providing it has a 4150 or 4500 bolt pattern. The Fuel Injection Plate provides a place for injectors and fuel rails to be mounted between your throttle body and intake manifold. This plate allows you to utilize up to 8 injectors, both long (55mm) and short (48mm) injectors will securely mount between the fuel rails and plate as the shafts holding the rails are fastened with grub screws.What’s in the box?
  • 1 x Fuel Injection Plate.
  • 2 x Fuel Rails.
  • 4 x Fuel Rail mounting shafts.
  • 4 x Grub Screws to fasten shafts.

A management system compatible with the injectors is necessary to provide tunability. This is a great set up with one of Proflow’s Quad Throttle bodies and Air Cleaners. For race applications it could also be used with one of Proflow’s fabricated Throttle Body Necks. Single plane intake manifold will provide better fuel distribution with this set up.

Note: When used with a Proflow Quad Throttle Body the vacuum ports will need to be blocked off as the protruding fittings will not clear the Injector Plate’s fuel rails. Alternatively, a spacer between the throttle body and Injector Plate will allow the fittings to clear the fuel rail.

Specs:
Material: Aluminium
Finish: Black
Fuels Rails Included: Yes
Quantity: Sold individually

Product Information

PROFLOW PFETBP4150B EFI CONVERSION FUEL INJECTION PLATE WITH FUEL RAILS BLACK
Proflow’s EFI conversion Fuel Injection Plate is an innovative way to convert your engine to EFI without needing to spend thousands of dollars. Proflow’s Fuel Injection Plate eliminates the need to replace or modify your non-EFI intake manifold, providing it has a 4150 or 4500 bolt pattern. The Fuel Injection Plate provides a place for injectors and fuel rails to be mounted between your throttle body and intake manifold. This plate allows you to utilize up to 8 injectors, both long (55mm) and short (48mm) injectors will securely mount between the fuel rails and plate as the shafts holding the rails are fastened with grub screws.What’s in the box?
  • 1 x Fuel Injection Plate.
  • 2 x Fuel Rails.
  • 4 x Fuel Rail mounting shafts.
  • 4 x Grub Screws to fasten shafts.

A management system compatible with the injectors is necessary to provide tunability. This is a great set up with one of Proflow’s Quad Throttle bodies and Air Cleaners. For race applications it could also be used with one of Proflow’s fabricated Throttle Body Necks. Single plane intake manifold will provide better fuel distribution with this set up.

Note: When used with a Proflow Quad Throttle Body the vacuum ports will need to be blocked off as the protruding fittings will not clear the Injector Plate’s fuel rails. Alternatively, a spacer between the throttle body and Injector Plate will allow the fittings to clear the fuel rail.

Specs:
Material: Aluminium
Finish: Black
Fuels Rails Included: Yes
Quantity: Sold individually
