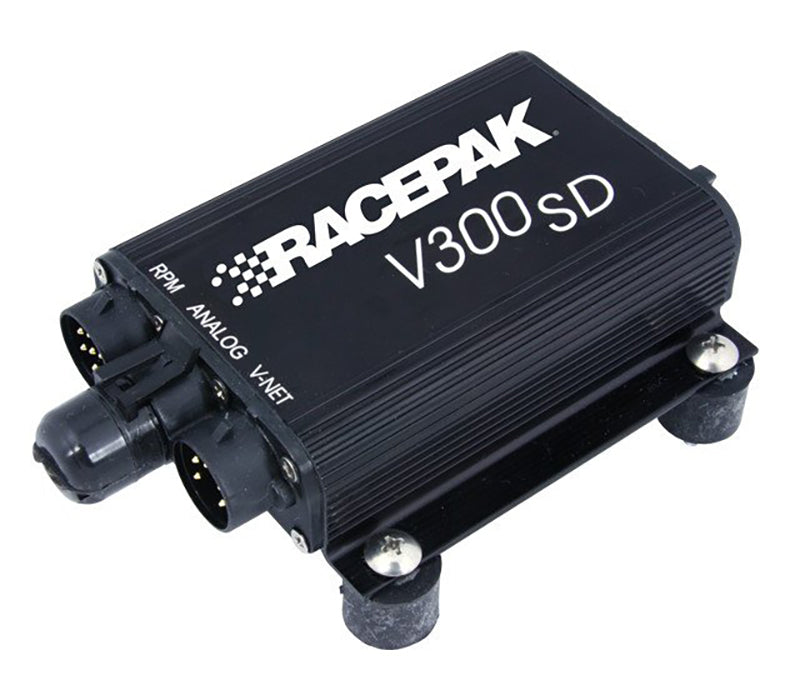

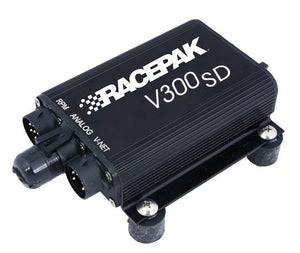

Racepak R200-KT-V300SDL V300Sd Data Recorder w/ Datalink Lite Software

The affordable V300SD data recorder is the most common recorder for Pro Stock, Pro Modified and many of the Sportsman classes. In its base configuration, the V300 monitors six parameters (Engine RPM, Driveshaft RPM, Accel G, Lateral G, Battery Volts and a 12-volt event), but it can be expanded to monitor up to 67 channels of data to meet the needs of most users. The V300SD can sample data as quickly as 1000 times per second.
Uploading recorded data to your computer is done via a SD memory card, which provides you with hours of recording time and the ability to store many runs prior to uploading the data. The V300SD also has multiple methods of displaying monitored data in real time. When linked by serial cable to your PC you can view all recorded functions in either graph format or on 8 virtual gauges while the vehicle is running. Any monitored function can also be displayed in real time on Racepak's optional Intelli-Gauges or ei ther the X).

DataLink Lite Software:
This is the base program used with all Racepak data recorders. In addition to the real time and recorded functions provided by File Viewer you gain the ability to overlay multiple runs simultaneously on the computer screen. DataLink Lite provides an expanded logbook for monitoring your vehicle, run, and weather data. A typical downloaded DataLink Lite screen view (as shown above) contains three panels. The top panel contains the file tabs and channel buttons for selecting the functions you wish to display on the screen. Alongside each channel button there is a display of the numeric value of the channel coinciding with the screen cursor location. In the centre panel is the graph display. These graphs are displayed with a timeline across the bottom and the scale value along the left edge. The bottom panel contains the tabs to access other pages related to the file being displayed. You would use these tabs to access such items as the STRONG>Channels:
67 total
V-Net: 56
Analogue: 4 hard-wired
Digital: 4 hard-wired
Internal: 3

Sample Rates:
V-Net: up to 100 per second
Analogue: up to 1000 per second
Digital: RPM and switch contacts up to 100 per second
Digital: Timing intervals within 1/1000th of a second

Memory:
SD memory card
Recording time depends on number of channels monitored and sample rates

Internal Sensors:
Battery Voltage
Longitudinal g-meter (acceleration and deceleration)
Lateral g-meter (side-to-side motion)

Dimensions:
4.374" (L) X 3.935" (W) X 1.230" (H)

Weight:
10 ounces
