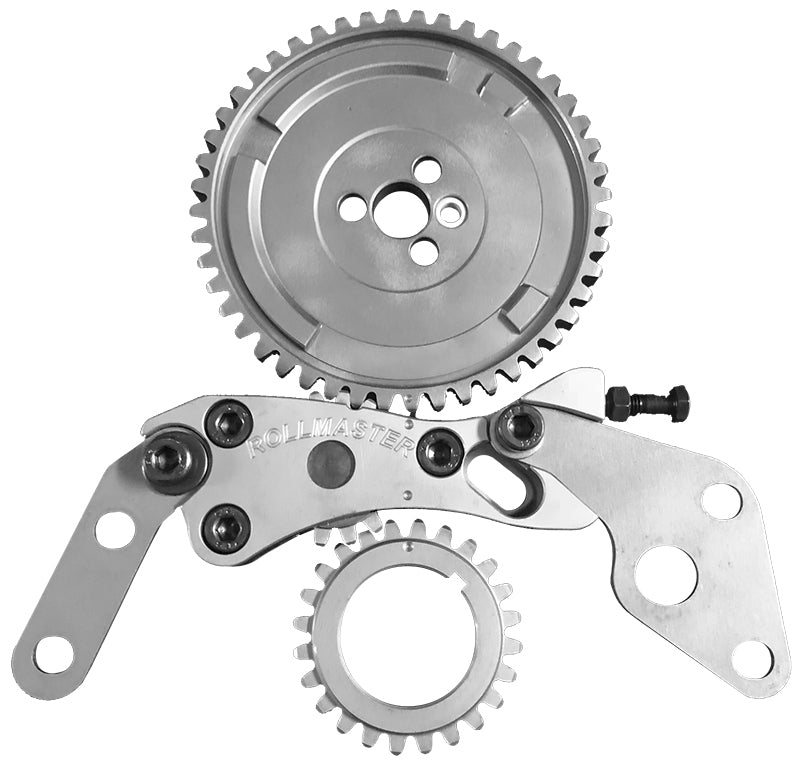

Gear Drive Timing Setsuit Gm LS3
Product Information
- Cam bushes in 0°, 2°, 4° and 6° for greater timing flexibility
- 'A' grade drawn cup needle roller bearings rated at 12000rpm and dynamic load rating of 8.6kN (1620lbf)
- Case hardened and ground idler shafts to improve bearing life
- Kits include cam lock tab
- Detailed instructions for correct installation
- For GM blocks
- Bolt on using the standard oil pump and timing gear
- Thrust washer rated to 16000rpm and dynamic load capacity of 7.2kN (1620lbf)
- Hardened gears for longer life under harsh conditions
- CNC turned for greater accuracy
- Precision cut idler plates
- Glass beaded gears to relieve stress
