SCAT Engine Components

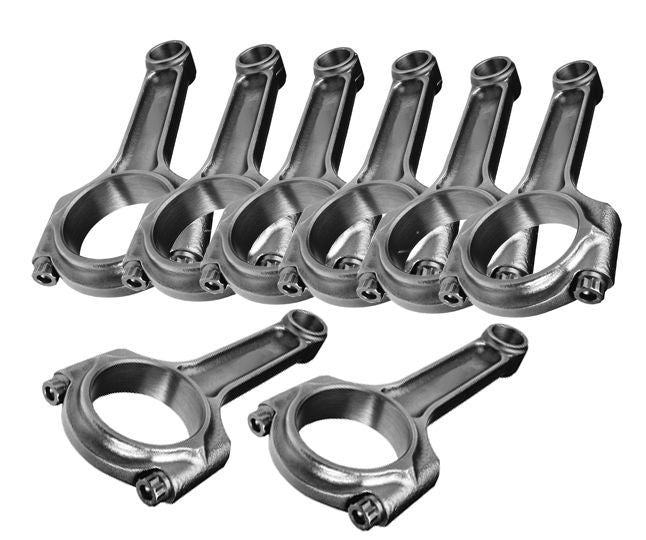

SCAT SC2-ICR5700-716 Pro Stock I-Beam Conrods Chev SB LJ 5.700" Long 7/16 Bolts

SCAT SC2-ICR5700-716 Pro Stock I-Beam Conrods Chev SB LJ 5.700" Long 7/16 Bolts

SC2-ICR5700-716
Regular price $948.70 AUD
Regular price Sale price $948.70 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
SCAT PRO STOCK I-BEAM CONRODS CHEV SB LARGE JOURNAL5.700" LONG 7/16 CAP BOLTS SC2-ICR5700-716
SCAT connecting rods feature the same high-quality craftsmanship that has led us to the forefront of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. We offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Holden and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT's master machinists.With ARP 7/16" CAP SCREWS, The ultimate I-Beam rod that incorporates the strength and technology of the H-Beam rod.
  • 5.700" Rod Length.
  • 2.100" Journal size.
  • .927" Pin dia.
  • .940" B.E. Width.
  • Bushed
  • 7/16" ARP 8740 Cap Screws.
  • Scat offers the best possible I-Beam Rod which offers a unique forging design to strengthen the big end. Stronger than all other I-Beam designs.
  • High Tensile 4340 Forged Material for Durability.
  • Balanced at Scat to ±1 gram in steps.
  • Single rib cap design for added strength and bearing support.
  • Polished beams to eliminate stress risers.
  • Special hollow dowels and huge 7/16" cap screw bolts greatly increase strength and horsepower capabilities
  • All Scat Rods are precision honed on the latest Sunnen Equipment.
  • Profiled clearance for stroker applications.
Specs:
Application: Chevy Small Block Gen 1 262-400 C.I.D. Large Journal Only
Connecting Rod Length Center to Center (in):5.700 in.
Connecting Rod Beam Style:I-beam
Connecting Rod Material:Forged 4340 steel
Wrist Pin Style:Floating
Clearanced for Stroker:Yes
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:8740 chromoly steel
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.2250 in.
Pin End Bore Diameter:0.927 in.
Big End Width (in):0.940 in.
Weight Matched SeYes
Quantity:Sold individually.
Items are shipped within one to two business days after full payment has been recieved.
Items are shipped within one to two business days after full payment has been recieved.


.



Manufacturer Part Number:
