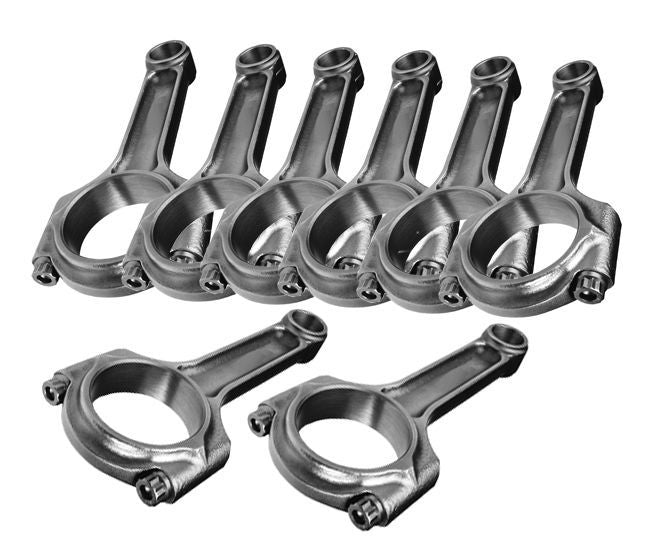

SCAT SC2-ICR6135-716 Pro Sc2-Icr6135-7/16 Chev BB Comp Forged I-Beam Conrods 6.135" Long 2.2" Journal

1 2

SCAT Engine Components

SC2-ICR6135-716
$1,008.75 AUD
$1,008.75 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

SCAT SC2-ICR6135-716 Pro Sc2-Icr6135-7/16 Chev BB Comp Forged I-Beam Conrods 6.135" Long 2.2" Journal

Item Description

SCAT connecting rods feature the same high-quality craftsmanship that has led us to the forefront of the performance industry.

SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. We offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Holden and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT's ster machinists.

  • 6.135" Rod Length.
  • 2.200" Journal size.
  • .990" Pin dia.
  • .992" B.E. Width.
  • Bushed
  • 7/16" ARP 8740 Cap Screws.
  • Scat offers the best possible I-Beam Rod which offers a unique forging design to strengthen the big end. Stronger than all other I-Beam designs.
  • High Tensile 4340 Forged Material for Durability.
  • Balanced at Scat to ±1 gram in steps.
  • Single rib cap design for added strength and bearing support.
  • Polished beams to eliminate stress risers.
  • Special hollow dowels and huge 7/16" cap screw bolts greatly increase strength and horsepower capabilities
  • All Scat Rods are precision honed on the latest Sunnen Equipment.
  • Profiled clearance for stroker applications.


Application: Chevy big block Mark IV 396-454 ci. V8.



  • Connecting Rod Length Center to Center (in): 6.135 in.
  • Connecting Rod Beam Style: I-beam
  • Connecting Rod Material: Forged 4340 steel
  • Wrist Pin Style: Floating
  • Clearanced for Stroker: Yes
  • Cap Retention Style: Cap screw
  • Connecting Rod Bolt Brand: ARP
  • Connecting Rod Bolt Diameter: 7/16 in.
  • Connecting Rod Bolt Material: 8740 chromoly steel
  • Fastener Yield Strength (psi): 200,000 psi
  • Connecting Rod Bolt Head Style: 12-point
  • Rod Journal Diameter (in): 2.200 in.
  • Big End Bore Diameter (in): 2.3250 in.
  • Pin End Bore Diameter: 0.990 in.
  • Big End Width (in): 0.992 in.
  • Weight Matched Se Yes
  • Remanufactured: No
  • Magnafluxed: No
  • Quantity: Sold as a set of 8.

Manufacturer Information

  • Manufacturer: SCAT Engine Components
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
