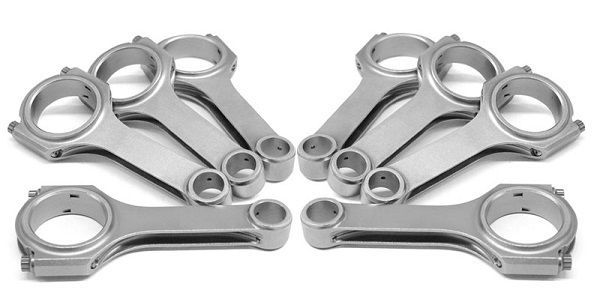

SCAT SC235057002100A LJ Chev SB V8 Pro Sport H Beam 4340 Conrods 5.700" Long

Item Description

SCAT connecting rods feature the same high-quality craftsmanship that has led us to the forefront of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. We offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Holden and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT's master machinists.

  • 5.700" Rod Length.
  • 2.100" Journal size.
  • .927" Pin dia.
  • .940" B.E. Width.
  • 7/16" ARP 2000 Cap Screws.
  • H-Beam design is the strongest SCAT rod available.
  • Perfect for supercharged and nitrous applications.
  • Special dowelled cap for Precision Alignment and sized to tight specifications.
  • High Tensile 4340 Forged Material for Durability.
  • Balanced at Scat to ±1 gram in steps.
  • All Scat Rods are precision honed on the latest Sunnen Equipment.
  • Profiled clearance for stroker applications.


Application: Chevy small block V8
  • Connecting Rod Length Center to Center (in): 5.700 in.
  • Connecting Rod Beam Style: H-beam
  • Connecting Rod Material: Forged 4340 steel
  • Connecting Rod Finish: Shot-peened and tumbled
  • Wrist Pin Style: Floating
  • Clearanced for Stroker: Yes
  • Cap Retention Style: Cap screw
  • Connecting Rod Bolt Brand: ARP
  • Connecting Rod Bolt Diameter: 7/16 in.
  • Connecting Rod Bolt Material: ARP2000 alloy
  • Fastener Yield Strength (psi): 200,000 psi
  • Connecting Rod Bolt Head Style: 12-point
  • Rod Journal Diameter (in): 2.100 in.
  • Big End Bore Diameter (in): 2.2250 in.
  • Pin End Bore Diameter: 0.927 in.
  • Big End Width (in): 0.940 in.
  • Weight Matched Set: Yes
  • Remanufactured: No
  • Magnafluxed: No
  • Quantity: Sold as a set of 8.
  • Notes: Custom pistons are required when using connecting rods with any length other than OE length.

Manufacturer Information

  • Manufacturer: SCAT Engine Components
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
