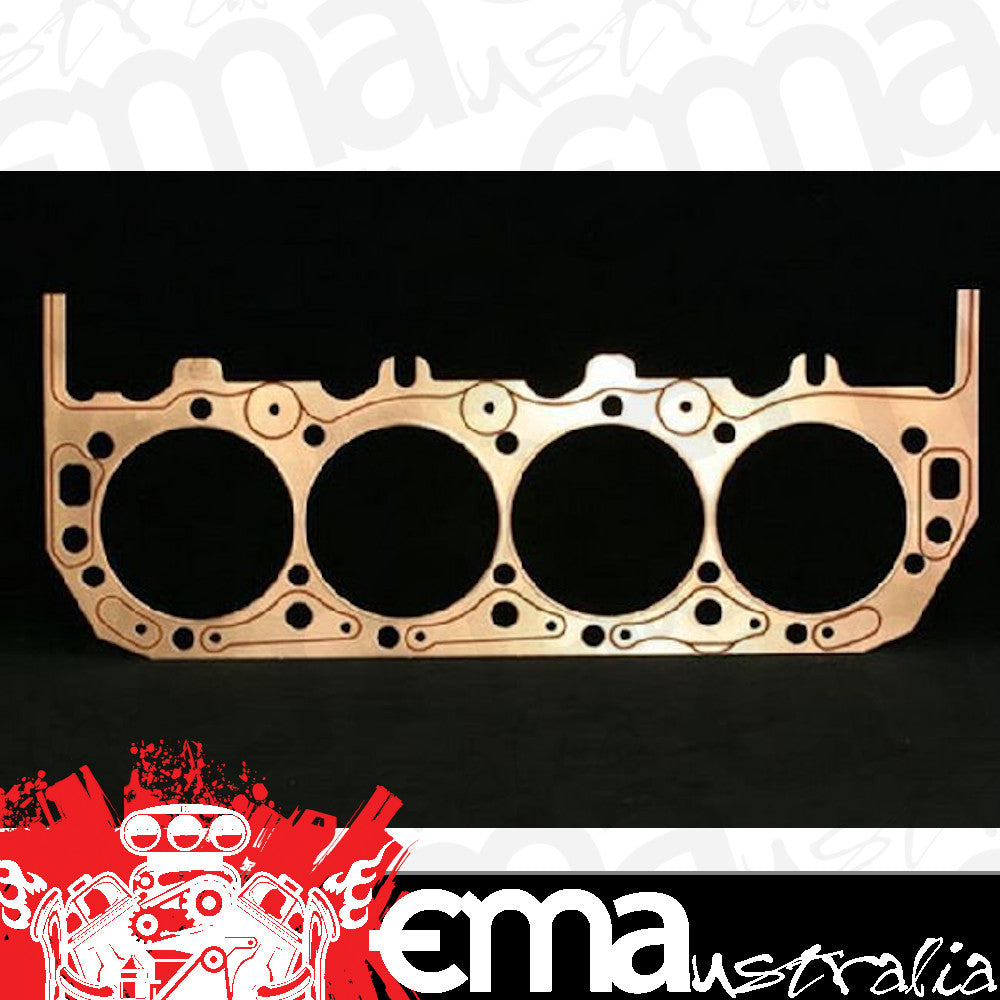

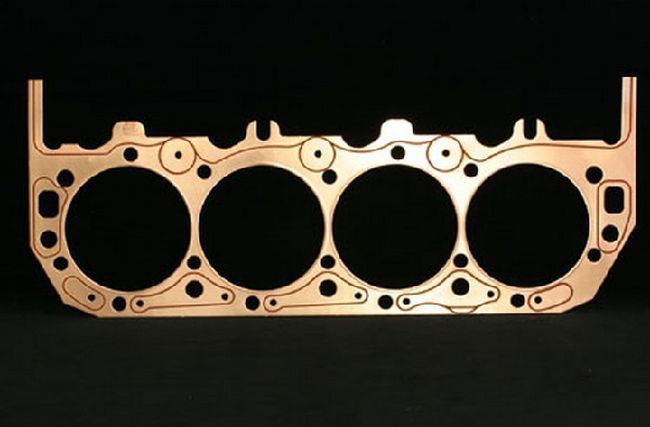

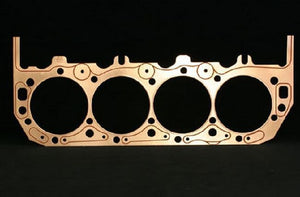

T136262 Chev BB 396-454 V8 .062" Titan Copper Head Gaskets 4.630" (pair)
Product Information
Patented coolant and oil seals found only on SCE Titan and ICS Titan head gaskets provide superior sealing due to offset upper and lower bead seals and limited sealant area.
This unique seal design requires less clamp load to seal coolant passages allowing more clamp load on the combustion seal than other "coated" copper gaskets.* These Gaskets are to be used with machined O-rings in Block or Head
- For competition engines which are not O-ringed use ICS Titan
- These Gaskets do not require additional sealant
Application: Chevy big block Mark IV 396-454 C.I.D. V8
- Bore (in): 4.630 in.
- Bore (mm): 117.602mm
- Gasket Material: Copper
- Compressed Thickness (in): 0.062 in.
- Compressed Volume (cc): 17.106cc
- Lock Wire: No
- Quantity: Sold as a pair.
- Notes: Mark 4 block, has .480 in. bolt holes. Extra bolt holes in valley area.
