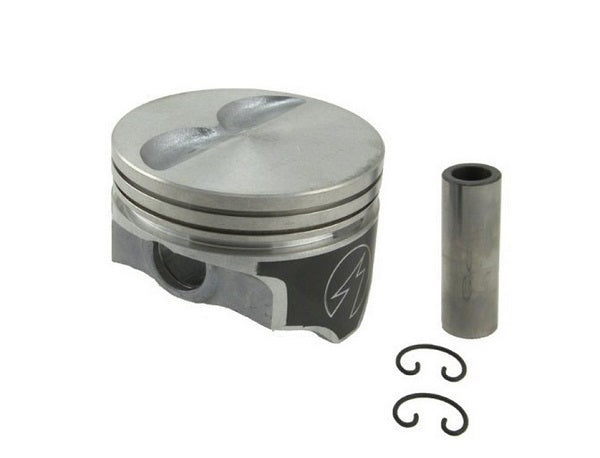

360 Ci SB Chrysler - Flat Top Hypereutectic
Product Information
Available on both hypereutectic and POWERFORGED pistons, DUROSHIELD is an exclusive moly-graphite skirt
coating that extends engine life and essentially eliminates scuffing. This technologically advanced coating is precisely applied to the piston through a computer-controlled process.
DUROSHIELD skirt coated pistons:
- Reduce friction for increased fuel economy and horsepower
- Essentially eliminate scuffing and wear
- Prevent damage from inadequate lubrication, especially at start-up
- Improve cylinder sealing for less blow-by and more power
- Require no increase in skirt clearance
Piston Specifications :
- CID: 360
- Bore: 4.030
- Stroke: 3.578
- Rod Length: 6.123
- Compression Height: 1.637
- Compression Ratio with 63cc chamber volume: 10.06
- Compression Ratio with 65cc chamber volume: 9.85
- Compression Ratio with 68.4cc chamber volume: 9.50
- Compression Ratio with 71cc chamber volume: 9.26
- Dome Volume: -5.0cc
- Pin Type: Press Or Float
- Recommended Ring Set: Moly - SPE251K 030, STD Fit - SPR9903 030, File Fit - SPR9343 035
