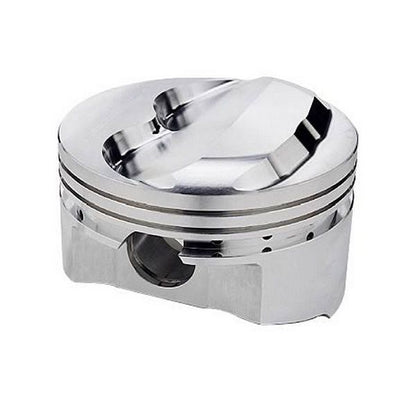

SRP Pistons | SRP140349 | Dome Top Forged Pistons for Chev SB 350 V8 4.040 Bore 3.750 Stroke

SRP140349 | Dome Top Forged Pistons for Chev SB 350 V8 4.040 Bore 3.750 Stroke

Skip to product information
1 of 2
SRP Pistons Part No. SRP140349
Regular price $1,402.85 AUD
Regular price Sale price $1,402.85 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:SRP140349

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.This piston set is ideal for oval track to street/strip applications, it is forged from low silicon 2618 aluminium alloy. Designed for use with most popular 23 degree heads, features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Product Information

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.This piston set is ideal for oval track to street/strip applications, it is forged from low silicon 2618 aluminium alloy. Designed for use with most popular 23 degree heads, features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
SRP Pistons
MPN
Not provided
UPC
Not provided
Our Part Number
SRP140349
Bore (in): 4.040 in.
Bore (mm): 102.616mm
Oversize: 0.040
Stroke (in.): 3.750 in.
Rod Length (in.): 6.000 in.
Piston Style: Dome top
Piston Material: Forged aluminum
Compression Distance (in): 1.125 in.
Piston Head Volume (cc): 7.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
Fitment

Confirm compatibility with our team before ordering when your application is not listed.
