SRP Pistons SRP151867 Dish Top Forged Pistons for Ford 302W V8 4.000" Bore 3.400" Stroke

1 2

SRP Pistons

SRP151867
$1,447.60 AUD
$1,447.60 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

SRP Pistons SRP151867 Dish Top Forged Pistons for Ford 302W V8 4.000" Bore 3.400" Stroke

Item Description

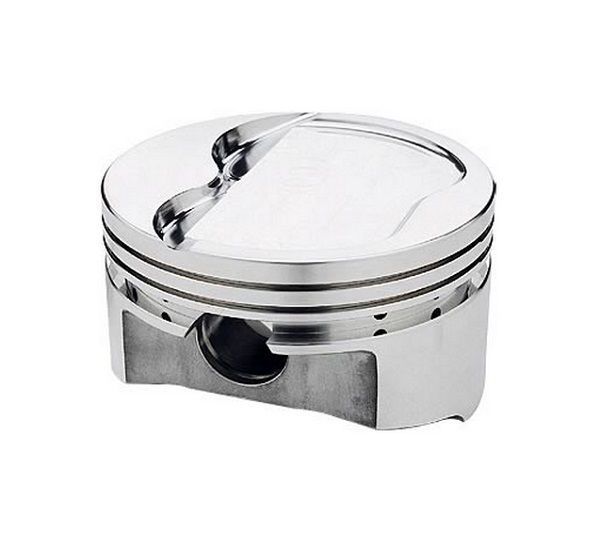

SRP DISH TOP FORGED PISTONS SRP151867 FOR FORD 302W V8 4.000" BORE 3.400" STROKE
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.This piston set is forged from high silicon 4032 aluminium alloy and is able to fit Ford, TFS, GT40, Canfield, Brodix Track I, OE and Dart Windsor. This piston set does not fit Twisted Wedge, N351 or EdelBrock 7721. Features Forged Side Reliefs (FSR) that reduce weight and pistol-to-wall surface contact. Piston set accepts 1/16, 1/16, 3/16 rings. All listed compression ratios are calculated at zero deck clearance. The deck clearance listed assumes a 8.200" (302) or 9.500" (351W) deck height.Specs:
Application: Ford small Block Windsor V8.
Bore (in): 4.000 in.
Bore (mm): 101.600mm
Oversize: STD
Stroke (in.): 3.400 in.
Rod Length (in.): 5.400 in.
Piston Style: Dish top
Piston Material: Forged aluminum
Compression Distance (in): 1.100 in.
Piston Head Volume (cc): 16.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
Quantity: Sold as a set of 8.
Notes: Oil rail support included.


Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
