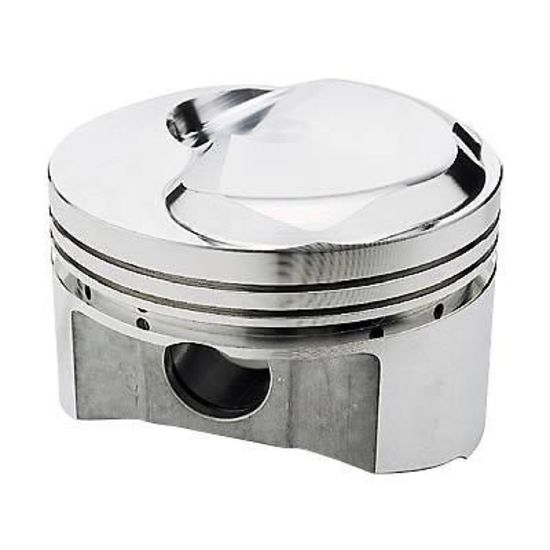

Forged Open Chamber Small Dome Piston Set Chev BB 4.310" Bore
Product Information
|
SRP FORGED OPEN CHAMBER SMALL DOME PISTON SET CHEV BB 4.310" BORE SRP212157SRP big block Chevy small dome profile pistons are designed to fit Edelbrock 110cc and GM Signature series heads. They're 4032 low-expansion, high-silicon aluminum alloy that's heat-treated to SRP specifications. CNC-machined domes with radiused valve reliefs provide optimum flame travel. They include a pin fitting, double Spiro locks, and a wall wrist pin. Their CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings and their closed chamber accepts 5/64, 5/64, 3/16 rings. Pin upgrades are available. Specs:Application: Chev Big Block 496 with 6.385" Rods Bore (in): 4.310 in. Bore (mm): 109.474mm Piston Style: Dome, with two valve reliefs Piston Material: Forged aluminum Compression Distance (in): 1.270 in. Piston Head Volume (cc): -18.00cc Wrist Pin Style: Press-fit or floating Pin Diameter (in): 0.990 in. Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in. Quantity: Sold as a set of 8. Notes: Oil rail support included. Items are shipped within one to two business days after full payment has been recieved. |
