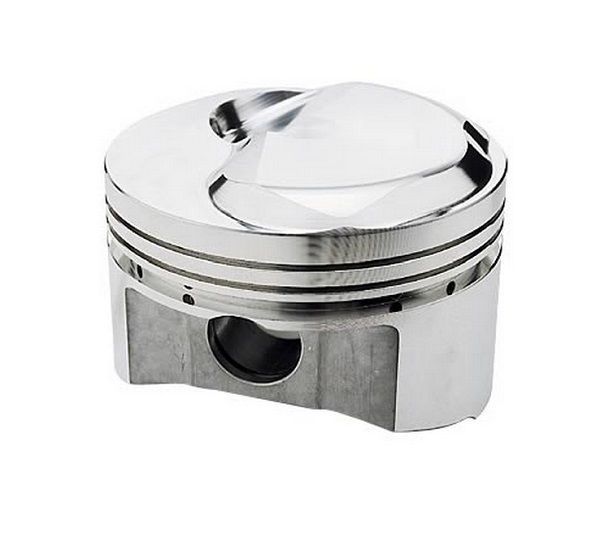

Chev Big Block V8 Small Dome Forged Pistons suit BB 4.500 Bore 4.250 Stroke SRP Pistons SRP212161

Chev Big Block V8 Small Dome Forged Pistons suit BB 4.500 Bore 4.250 Stroke SRP Pistons SRP212161

Skip to product information
1 of 2
SRP Pistons Part No. SRP212161
Price before flash sale $1,440.00 AUD Flash sale price $1,368.00 AUD SAVE 5% Applied automatically in cart · Ends Mon 8am AEDT
Taxes included. Shipping calculated at checkout.

SKU:SRP212161

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
Availability: Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings

Product Information

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
SRP Pistons
MPN
Not provided
UPC
Not provided
Our Part Number
SRP212161
Bore (in): 4.500 in
Bore (mm): 114.300mm
Stroke (in.): 4.250 in
Rod Length (in.): 6.385 in
Oversize: 0.030
Piston Style: Dome top
Piston Material: Forged aluminum
Compression Distance (in): 1.270 in
Piston Head Volume (cc): 10.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.990 in
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in
Quantity: Sold as a set of 8
Notes: Oil rail support included
Fitment
