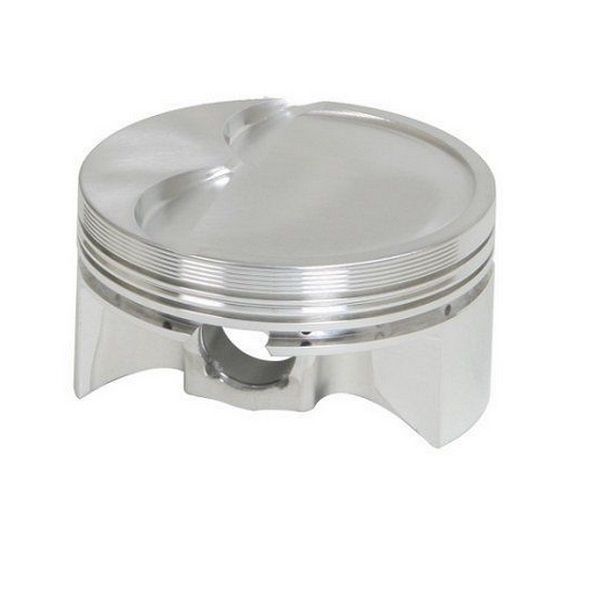

SRP Pistons SRP271100 Chev LS2 LS3 LS6 L92 Dish Top Piston & Ring Set 4.005" Bore 4"

Item Description

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.


This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include Advanced, lightweight FSR forging that eliminates stress concentrations for superior strength and forced pin oiling. Included Piston Ring set (1.2, 1.5, 3.0mm).



  • Application: Chev small Block LS2 / LS3 / LS6 / L92 V8.
  • Bore (in): 4.005 in.
  • Bore (mm): 101.727mm
  • Oversize: 0.005
  • Stroke (in.): 4.000 in.
  • Rod Length (in.): 6.125 in.
  • Piston Style: Dish Top
  • Piston Material: Forged aluminum
  • Compression Distance (in): 1.115 in.
  • Piston Head Volume (cc): -10.00cc
  • Wrist Pin Style: Press-fit or floating
  • Pin Diameter (in): 0.927 in.
  • Gapless: No
  • File Fi No
  • Top Ring Thickness: 1.2mm
  • Top Ring Material: Steel
  • Top Ring Facing Material: Steel
  • Second Ring Thickness: 1.5mm
  • Second Ring Material: Cast iron
  • Second Ring Facing Material: Cast iron
  • Oil Ring Thickness: 3.0mm
  • Oil Ring Material: Chrome plated carbon steel
  • Oil Ring Tension: Standard
  • Quantity: Sold as a kit.

Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
