SRP Pistons

SRP Pistons SRP271102 Dish Top Piston & Ring Set Chev LS2/Ls3/LS6/L92 4.030" Bore 4" Str

SRP Pistons SRP271102 Dish Top Piston & Ring Set Chev LS2/Ls3/LS6/L92 4.030" Bore 4" Str

SRP271102
$1,725.90 AUD
$1,725.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

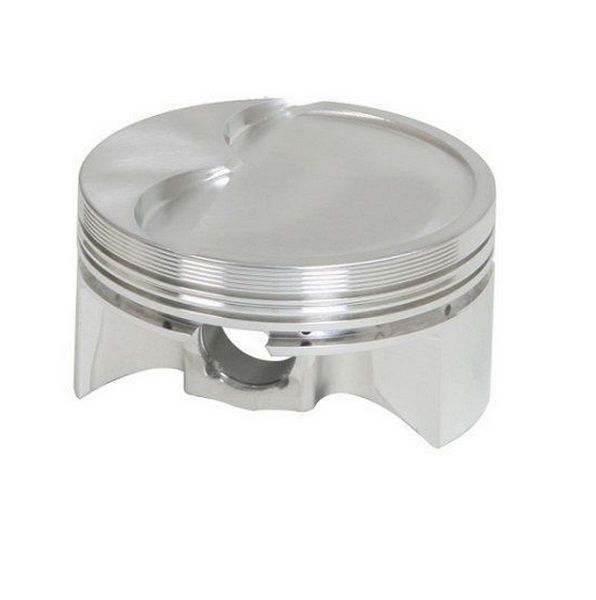

SRP DISH TOP PISTON & RING SET SRP271102 CHEV LS2/LS3/LS6/L92 4.030" BORE 4" STROKE
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.
This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include Advanced, lightweight FSR forging that eliminates stress concentrations for superior strength and forced pin oiling. Included Piston Ring set (1.2, 1.5, 3.0mm).Specs:
Application: Chev small Block LS2 / LS3 / LS6 / L92 V8.
Bore (in): 4.030 in.
Bore (mm): 102.362mm
Stroke: 4.000 in.
Rod Length: 6.125 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Distance (in): 1.115 in.
Piston Head Volume (cc): +10.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Gapless: No
File Fi No
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: Steel
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Oil Ring Tension: Standard
Quantity: Sold as a kit.
Notes: Inverted dome design. Oil rail support included.




Manufacturer Part Number:
