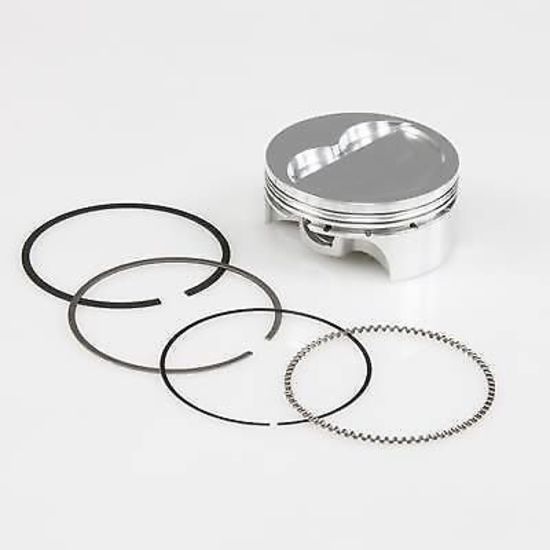

Chev/Holden LS3 STD 4.065" Bore Forged Flat Top Piston & Ring Set P279592
Product Information
|
SRP CHEV/HOLDEN LS3 STD 4.065" BORE FORGED FLAT TOP PISTON & RING SET P279592SRPSRP professional pistons and rings include features used in professional racing, such as lightweight forged side relief (FSR) forgings, high-quality wrist pins, and precision CNC-machined ring grooves and skirts. In addition, every package includes JE Pro Seal premium piston rings. The included ring set features a 1.2 premium steel top ring, a 1.5mm Napier (hooked face) second ring, and a 3.0mm standard tension oil ring. Every SRP Professional piston is designed and manufactured in the USA at the advanced JE/SRP pistons manufacturing center. Specs:Application: Chev / Holden LS3 6.2L (STD Bore). Bore (in): 4.065 in. Bore (mm): 103.251 mm
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Distance (in): 1.315 in.
Piston Head Volume (cc): -5.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Connecting Rod: 6.125 in.
Stroke: 3.622"
Piston Rings Included: Yes
Top Ring Thickness: 1.2mm
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Quantity: Sold as a kit.
|
