SRP Pistons

SRP Pistons SRP285744SRP Forged Dish Top Piston & Ring Set Chev LS2 STD Bore 1.330" Comp P285744

SRP Pistons SRP285744SRP Forged Dish Top Piston & Ring Set Chev LS2 STD Bore 1.330" Comp P285744

SRP285744SRP
$1,725.20 AUD
$1,725.20 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

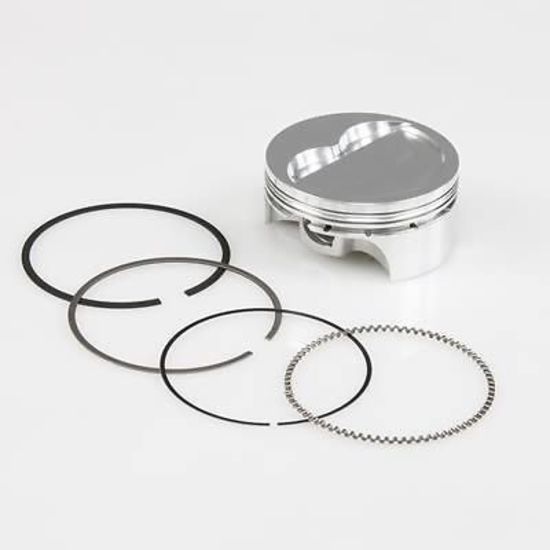

SRP FORGED DISH TOP PISTON & RING SET CHEV LS2 STD BORE 1.330" COMP P285744SRP
SRP professional pistons and rings include features used in professional racing, such as lightweight forged side relief (FSR) forgings, high-quality wrist pins, and precision CNC-machined ring grooves and skirts. In addition, every package includes JE Pro Seal premium piston rings. The included ring set features a 1.2 premium steel top ring, a 1.5mm Napier (hooked face) second ring, and a 3.0mm standard tension oil ring. Every SRP Professional piston is designed and manufactured in the USA at the advanced JE/SRP pistons manufacturing center.
Piston design benefits include:
* Advanced, lightweight FSR forging that eliminates stress concentrations for superior strength
* Up to 20 percent lighter than traditional equivalent
* High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation
* Accumulator grooves for improved ring seal
* Designed for normally aspirated or moderate forced induction/nitrous applications
Specs:Application: Chev / Holden LS2 6.0L/364 C.I.D. (STD Bore)Bore (in): 4.000 in.
Bore (mm): 101.600mm
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in): 1.330 in.
Piston Head Volume (cc): -13.10cc
Connecting Rod: 6.098 in.
Pin Diameter (in): 0.945 in.
Stroke: 3.622"
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: Steel
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Oil Ring Tension: Standard
Quantity: Sold as a kit.



Manufacturer Part Number:
