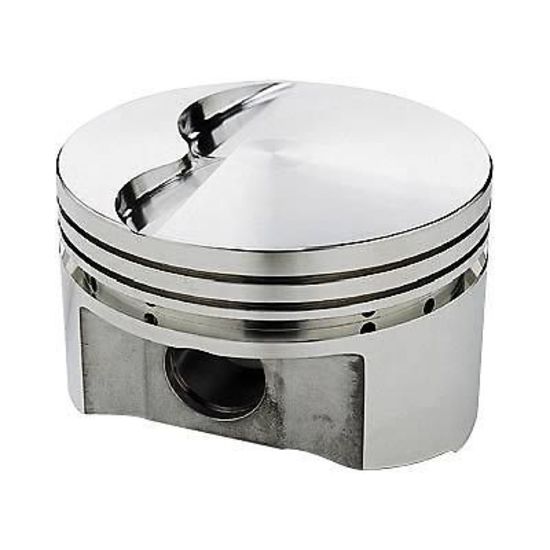

SRP Pistons SRP285745SRP Chev/Holden LS2 STD Forged Flat Top Piston & Ring Set 4.000" Bore P285745

Item Description

SRP CHEV/HOLDEN LS2 STD FORGED FLAT TOP PISTON & RING SET 4.000" BORE P285745SRPSRP Pistons are designed for street/strip applications utilizing many compression ratio combinations compatible with pump gas as well as moderate turbo boost and nitrous oxide. SRP Domestic Pistons are forged from 4032 low-expansion aluminum alloy for smooth and quiet operation. CNC machined ring grooves accept 1.2mm, 1.5mm, 3.0mm Premium Rings Included. RINGS INCLUDED
  • Lightweight, low friction metric ring package included
  • 1.2mm top ring, 1.5mm Napier 2nd ring, 3.0mm standard tension oil ring
  • Napier 2nd ring for improved oil control
  • Minimal filing required
    • Specs:Application: Chev / Holden LS2/6.0L (STD Bore)Bore (in): 4.000 in.
    Bore (mm): 101.600mm
    Piston Style: Flat top, with two valve reliefs
    Piston Material: Forged aluminum
    Compression Distance (in): 1.330 in.
    Piston Head Volume (cc): -5.00cc
    Connecting Rod: 6.098 in.
    Pin Diameter (in): 0.945 in.
    Stroke: 3.622"
    Piston Rings Included: Yes
    Gapless: No
    File Fi Yes
    Top Ring Thickness: 1.2mm
    Top Ring Material: Ductile iron
    Top Ring Facing Material: Plasma-moly
    Second Ring Thickness: 1.5mm
    Second Ring Material: Cast iron
    Second Ring Facing Material: Cast iron
    Oil Ring Thickness: 3.0mm
    Oil Ring Material: Chrome plated carbon steel
    Oil Ring Tension: Standard
    Quantity: Sold as a kit.



    Manufacturer Information

    • Manufacturer: SRP Pistons
    • Manufacturer Part Number:
    • UPC:
    • Colour:
    • Additional Information:
