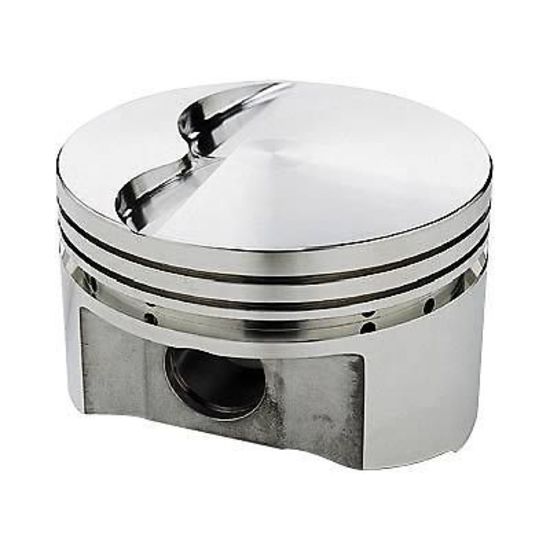

SRP Pistons SRP285748SRP Chev/Holden LS2 +010 Forged Dish Top Piston & Ring Set 4.010" P285748

Chev/Holden LS2 +010 Forged Dish Top Piston & Ring Set 4.010" P285748

1 2
SRP Pistons
SRP Pistons Part No. SRP285748SRP
$1,497.30 AUD
$1,497.30 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SRP285748SRP

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

SRP CHEV/HOLDEN LS2 +010 FORGED DISH TOP PISTON & RING SET 4.010" P285748SRPSRP Pistons are designed for street/strip applications utilizing many compression ratio combinations compatible with pump gas as well as moderate turbo boost and nitrous oxide. SRP Domestic Pistons are forged from 4032 low-expansion aluminum alloy for smooth and quiet operation. CNC machined ring grooves accept 1.2mm, 1.5mm, 3.0mm Premium Rings Included. RINGS INCLUDED
  • Lightweight, low friction metric ring package included
  • 1.2mm top ring, 1.5mm Napier 2nd ring, 3.0mm standard tension oil ring
  • Napier 2nd ring for improved oil control
  • Minimal filing required
    • Specs:Application: Chev / Holden LS2/6.0L (+010 Bore)Bore (in): 4.010 in.
    Bore (mm): 101.854mm
    Piston Style: Dish, with two valve reliefs
    Piston Material: Forged aluminum
    Compression Distance (in): 1.330 in.
    Piston Head Volume (cc): -5.00cc
    Connecting Rod: 6.098 in.
    Pin Diameter (in): 0.945 in.
    Stroke: 3.622"
    Piston Rings Included: Yes
    Gapless: No
    File Fi Yes
    Top Ring Thickness: 1.2mm
    Top Ring Material: Ductile iron
    Top Ring Facing Material: Plasma-moly
    Second Ring Thickness: 1.5mm
    Second Ring Material: Cast iron
    Second Ring Facing Material: Cast iron
    Oil Ring Thickness: 3.0mm
    Oil Ring Material: Chrome plated carbon steel
    Oil Ring Tension: Standard
    Quantity: Sold as a kit.
