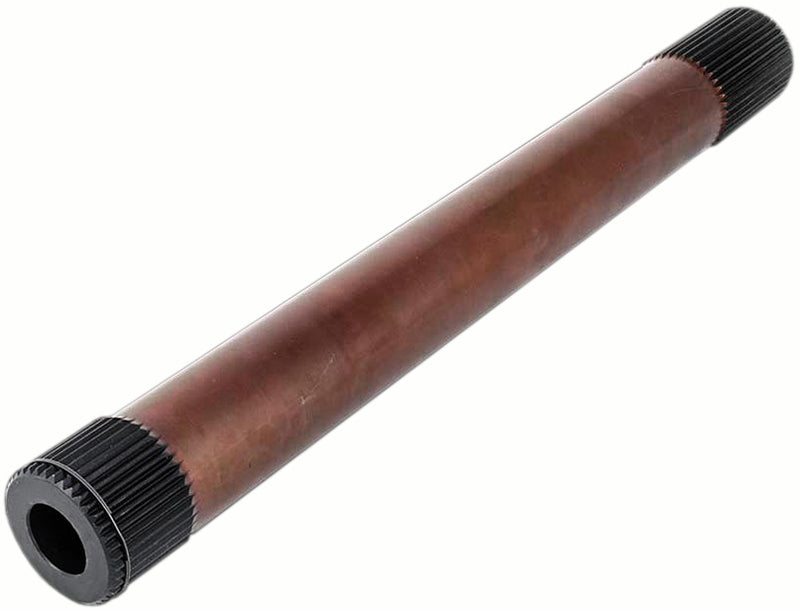

Strange STA2040 40 Spline Floater Axles

40 Spline Floater Axles

Skip to product information
1 of 2
Strange Part No. STA2040
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:STA2040

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Strange Pro Race axles are forged from Hy-Tuf alloy steel that was originally developed for highly stressed landing gear in military aircraft. Hy-Tuf was originated in the class of Ultra-Strength alloys. The Hy-Tuf forging is a low carbon, high manganese, high-nickel and high molybdenum steel. Strange Pro racing axles are thru-hardened, which allows for a drag racing shaft with an exceptionally high tensile strength (240,000 PSI) while retaining ductility. Strange Engineering stocks a variety of completely finished axles for specific applications. After 40 years of manufacturing axles, we know which applications are most common; there is no reason to charge you extra for priority service. If your requirements cannot be met by our extensive inventory, we will custom manufacture your axle from our Hy-Tuf forging at no additional cost. Strange Pro Race axles are the best value on the market- that's why more drag racing competitors rely on Strange axles than all other brands combined!

About Gun-Drilled Axles

Strange gun-drilled axles were created to reduce rotating weight. Gun-drilling is a process where the core of the axle is removed, leaving a .875" hole through the entire length of the shaft. Each gun-drilled axle is further lightened by eliminating axle flange material with five 1" diameter holes. A 35-spline gun-drilled axle is 25.6% lighter than a solid 35-spline axle and can be used for non-blown cars weighing under 1,850 lbs.

Strange 40-spline gun-drilled axles can withstand the abuse of drag racing vehicles weighing 3,500 lbs. and with quarter mile elapsed time slips under seven seconds. Strange 40-spline gun-drilled axles are 10% lighter than 35-spline solid axles and an astonishing 54% stronger. The Strange 40-spline gun-drilled axle is truly the ultimate drag racing axle. A solid axle shaft is stronger than an equivalent diameter gun-drilled shaft; therefore, when weight is not an issue a gun-drilled axle should not be considered.



Product Information

Strange Pro Race axles are forged from Hy-Tuf alloy steel that was originally developed for highly stressed landing gear in military aircraft. Hy-Tuf was originated in the class of Ultra-Strength alloys. The Hy-Tuf forging is a low carbon, high manganese, high-nickel and high molybdenum steel. Strange Pro racing axles are thru-hardened, which allows for a drag racing shaft with an exceptionally high tensile strength (240,000 PSI) while retaining ductility. Strange Engineering stocks a variety of completely finished axles for specific applications. After 40 years of manufacturing axles, we know which applications are most common; there is no reason to charge you extra for priority service. If your requirements cannot be met by our extensive inventory, we will custom manufacture your axle from our Hy-Tuf forging at no additional cost. Strange Pro Race axles are the best value on the market- that's why more drag racing competitors rely on Strange axles than all other brands combined!

About Gun-Drilled Axles

Strange gun-drilled axles were created to reduce rotating weight. Gun-drilling is a process where the core of the axle is removed, leaving a .875" hole through the entire length of the shaft. Each gun-drilled axle is further lightened by eliminating axle flange material with five 1" diameter holes. A 35-spline gun-drilled axle is 25.6% lighter than a solid 35-spline axle and can be used for non-blown cars weighing under 1,850 lbs.

Strange 40-spline gun-drilled axles can withstand the abuse of drag racing vehicles weighing 3,500 lbs. and with quarter mile elapsed time slips under seven seconds. Strange 40-spline gun-drilled axles are 10% lighter than 35-spline solid axles and an astonishing 54% stronger. The Strange 40-spline gun-drilled axle is truly the ultimate drag racing axle. A solid axle shaft is stronger than an equivalent diameter gun-drilled shaft; therefore, when weight is not an issue a gun-drilled axle should not be considered.



Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Strange
MPN
Not provided
UPC
Not provided
Our Part Number
STA2040

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Strange

Strange products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
