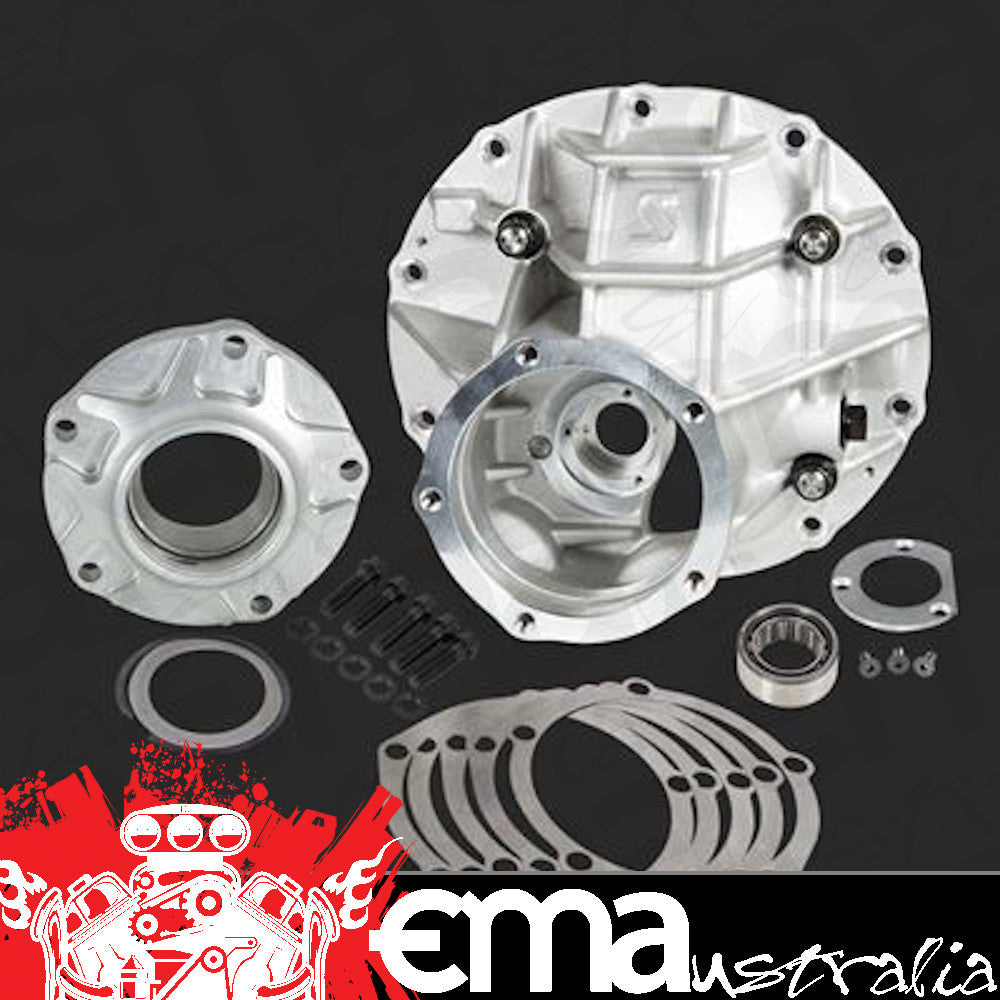

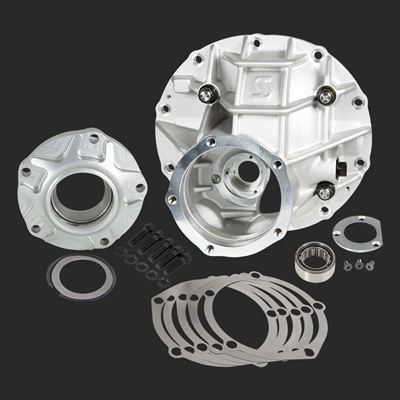

Strange STP3203BB Ford 9' Aluminium Pro Diff 3.250' Case/Carrier Kit- Ball Support Shims Tail Brg & Ret

Item Description

When every pound and thousandth of a second counts, racers need lightweight, yet heavy-duty parts for their vehicles. Strange HD Pro aluminum case kits offer large bore sizes for the highest splined axles. They use superior 206-T4 heat-treated aluminum, which has 12 percent more yield strength and 32 percent higher tensile strength than the commonly used 356-T6; it's also substantially lighter than an iron case. HD Pro kits are designed for drag racing or abusive street/strip applications with high horsepower and torque. They feature a billet pinion support with 360 degree channel to maximize oil flow to the pinion bearing, as well as two contact points with the bore of the case--which holds the pinion shaft more securely for improved bearing and gear life. Their oversized tail bearing handles more load and greater rpm; billet main caps with chromoly studs support the carrier bearings, while significantly reducing ring gear deflection. When you need a lightweight heavy-duty case to run high-splined axles, order a Strange HD Pro aluminum case kit.


Overview:
- Case Style: Ford 9 in.
- Case Material: Aluminium
- Case Finish: Natural
- Main Caps Included: Yes
- Main Cap Material: Aluminium
- Main Cap Retention Style: Bolt
- Carrier Bearing Diameter (in): 3.250 in.
- Pinion Support Bolt Quantity: 5
- Standard Pinion Location: Yes
- Hardware Included: Yes
- Ring Gear Load Bolt: Yes
- Notes: Includes ball bearing pinion support, shims, tail bearing, and tail bearing retainer plate.


Manufacturer Information

  • Manufacturer: Strange
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
