Engineering Ford 9åÛ_ 4.11 Pro Gear w/ 35 Spline Pinion
Strange
Part No. STRP07990411
Regular price
$1,635.00 AUD
Regular price
Sale price
$1,635.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:STRP07990411
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

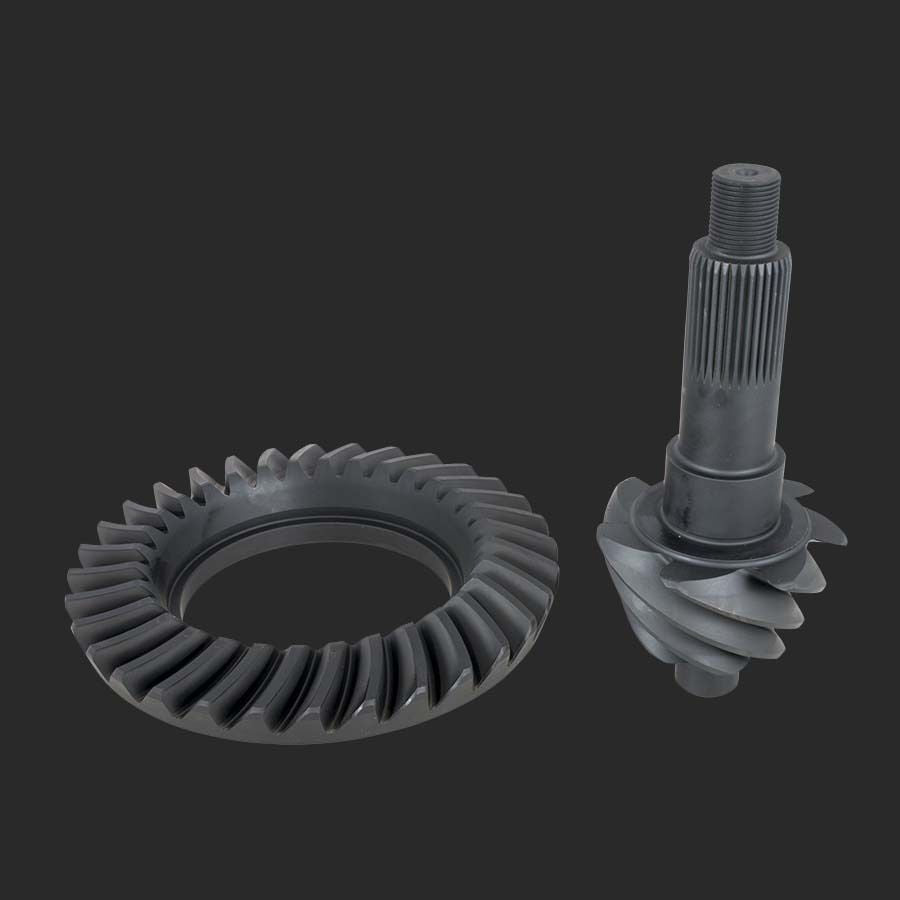

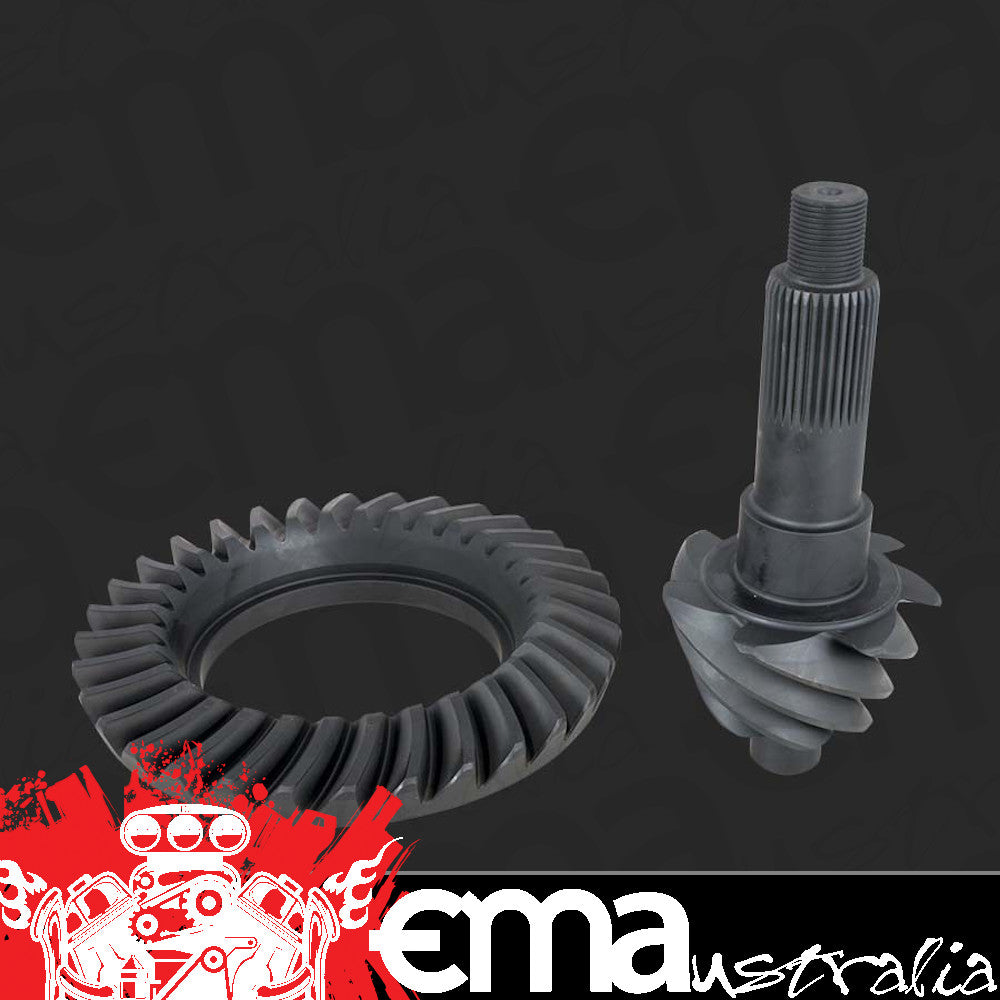

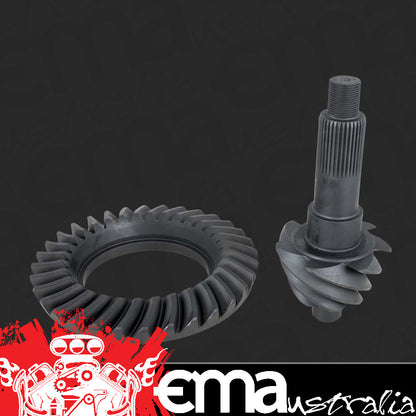

Strange Engineering STRP07990411 Ford 9″ 4.11 Pro Gear with 35 Spline PinionDesigned For Drag Racing OnlyPro Gears may be necessary when tooth breakage occurs with Standard gear sets
Produced from a softer material, the teeth can flex as opposed to crack and breakThe life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle
If a Standard gear provided acceptable life, a Pro gear may not be the right choiceMachined From 9310 Forged Steel
Heat Treated to Optimize Material Properties
Matched Ring & Pinion SetRing Gear
– 9″ OD
– Tooth count 37
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threadsPinion
– 35 spline shaft
– Tooth count 9
– 1″-14 RH threadsNote
35 Spline Pinions Require Capable Pinion Supports
Will Not Fit OEM Or Daytona Style SupportsINSTALLATION KITS - Contact us for availabilityUsing Tapered Bearing Pinion Support
HD Pro & Drag race…….. R5238 / R5238WR
Ultra & Billet cases…. R5238UC / R5238UCRUsing Ball Bearing Pinion Support
HD Pro & Drag Race…… R5238B / R5238BR
Ultra & Billet cases… R5238UCB / R5238UCBR
Produced from a softer material, the teeth can flex as opposed to crack and breakThe life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle
If a Standard gear provided acceptable life, a Pro gear may not be the right choiceMachined From 9310 Forged Steel
Heat Treated to Optimize Material Properties
Matched Ring & Pinion SetRing Gear
– 9″ OD
– Tooth count 37
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threadsPinion
– 35 spline shaft
– Tooth count 9
– 1″-14 RH threadsNote
35 Spline Pinions Require Capable Pinion Supports
Will Not Fit OEM Or Daytona Style SupportsINSTALLATION KITS - Contact us for availabilityUsing Tapered Bearing Pinion Support
HD Pro & Drag race…….. R5238 / R5238WR
Ultra & Billet cases…. R5238UC / R5238UCRUsing Ball Bearing Pinion Support
HD Pro & Drag Race…… R5238B / R5238BR
Ultra & Billet cases… R5238UCB / R5238UCBR
Product Information
Strange Engineering STRP07990411 Ford 9″ 4.11 Pro Gear with 35 Spline PinionDesigned For Drag Racing OnlyPro Gears may be necessary when tooth breakage occurs with Standard gear sets
Produced from a softer material, the teeth can flex as opposed to crack and breakThe life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle
If a Standard gear provided acceptable life, a Pro gear may not be the right choiceMachined From 9310 Forged Steel
Heat Treated to Optimize Material Properties
Matched Ring & Pinion SetRing Gear
– 9″ OD
– Tooth count 37
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threadsPinion
– 35 spline shaft
– Tooth count 9
– 1″-14 RH threadsNote
35 Spline Pinions Require Capable Pinion Supports
Will Not Fit OEM Or Daytona Style SupportsINSTALLATION KITS - Contact us for availabilityUsing Tapered Bearing Pinion Support
HD Pro & Drag race…….. R5238 / R5238WR
Ultra & Billet cases…. R5238UC / R5238UCRUsing Ball Bearing Pinion Support
HD Pro & Drag Race…… R5238B / R5238BR
Ultra & Billet cases… R5238UCB / R5238UCBR
Produced from a softer material, the teeth can flex as opposed to crack and breakThe life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle
If a Standard gear provided acceptable life, a Pro gear may not be the right choiceMachined From 9310 Forged Steel
Heat Treated to Optimize Material Properties
Matched Ring & Pinion SetRing Gear
– 9″ OD
– Tooth count 37
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threadsPinion
– 35 spline shaft
– Tooth count 9
– 1″-14 RH threadsNote
35 Spline Pinions Require Capable Pinion Supports
Will Not Fit OEM Or Daytona Style SupportsINSTALLATION KITS - Contact us for availabilityUsing Tapered Bearing Pinion Support
HD Pro & Drag race…….. R5238 / R5238WR
Ultra & Billet cases…. R5238UC / R5238UCRUsing Ball Bearing Pinion Support
HD Pro & Drag Race…… R5238B / R5238BR
Ultra & Billet cases… R5238UCB / R5238UCBR
