Stromberg STROM9241P-CHR 2 x 2 Linkage Kit

2 x 2 Linkage Kit

Skip to product information
1 of 2
Stromberg Part No. STROM9241P-CHR
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:STROM9241P-CHR

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

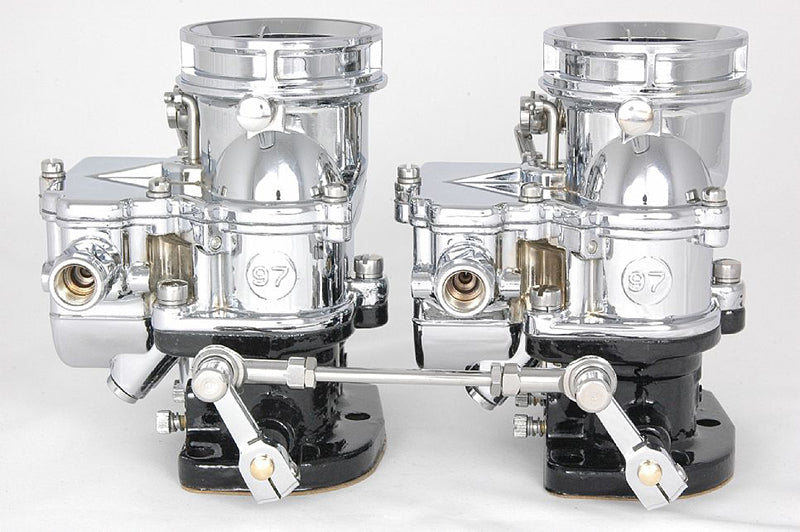

Designed and manufactured exclusively by Stromberg Carburetor, the TwoStep linkage range combines clean, traditional looks with maximum leverage. Each kit comes pre-assembled and installs in just two simple steps, without the need for extended throttle shafts. These kits are not a 'one size fits all' solution. Different intakes use different carb spacing, so we modeled every kit in 3D CAD and offer different kits for specific intakes. If you're in doubt, simply measure your manifold spacing - throttle shaft to throttle shaft. A Premium, CHROME 2x2 carburetor linkage with rod ends for positive action. Use with intake manifolds that put the carburetors 4-3/4 inches apart.

Features:

  • Premium kits have opposite threaded rod ends for easy adjustment. Just spin the rod to adjust for the correct lever angles.
  • Extended throttle shafts are not required.
  • Long die-cast zinc SuperLink lever arms. All other parts stainless steel - even the rod ends and lock nuts.
  • Every kit comes with two new Stromberg 'Snapback' throttle return springs, which wrap around the end of the throttle shaft. These chemically blacked, stainless steel torsion springs snap the carburetors shut, yet virtually disappear from view.
  • Special swivels and bolts were developed to clamp the rod ends tight. The rounded bolts have a small blind hole in the head. Simply insert a small rod eg, a hex key, to stop the swivels turning while you tighten the lock nuts.
  • 4-3/4 inches from carb to carb
  • Show chrome/polished stainless steel finish
  • Extended throttle shafts not required
  • Fits Offenhauser 1090 & 1075 2x2 Regular intakes
  • Fits Edelbrock 1103 2x2 Slingshot intake
  • Fits Navarro 2x2 Regular intake
  • Fits Eddie Meyer 2x2 High-rise intake
  • Fits Thickstun PM-7 High-rise intake
  • Works with all Stromberg 9141 TwoStep fuel lines


Product Information

Designed and manufactured exclusively by Stromberg Carburetor, the TwoStep linkage range combines clean, traditional looks with maximum leverage. Each kit comes pre-assembled and installs in just two simple steps, without the need for extended throttle shafts. These kits are not a 'one size fits all' solution. Different intakes use different carb spacing, so we modeled every kit in 3D CAD and offer different kits for specific intakes. If you're in doubt, simply measure your manifold spacing - throttle shaft to throttle shaft. A Premium, CHROME 2x2 carburetor linkage with rod ends for positive action. Use with intake manifolds that put the carburetors 4-3/4 inches apart.

Features:

  • Premium kits have opposite threaded rod ends for easy adjustment. Just spin the rod to adjust for the correct lever angles.
  • Extended throttle shafts are not required.
  • Long die-cast zinc SuperLink lever arms. All other parts stainless steel - even the rod ends and lock nuts.
  • Every kit comes with two new Stromberg 'Snapback' throttle return springs, which wrap around the end of the throttle shaft. These chemically blacked, stainless steel torsion springs snap the carburetors shut, yet virtually disappear from view.
  • Special swivels and bolts were developed to clamp the rod ends tight. The rounded bolts have a small blind hole in the head. Simply insert a small rod eg, a hex key, to stop the swivels turning while you tighten the lock nuts.
  • 4-3/4 inches from carb to carb
  • Show chrome/polished stainless steel finish
  • Extended throttle shafts not required
  • Fits Offenhauser 1090 & 1075 2x2 Regular intakes
  • Fits Edelbrock 1103 2x2 Slingshot intake
  • Fits Navarro 2x2 Regular intake
  • Fits Eddie Meyer 2x2 High-rise intake
  • Fits Thickstun PM-7 High-rise intake
  • Works with all Stromberg 9141 TwoStep fuel lines


Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Stromberg
MPN
Not provided
UPC
Not provided
Our Part Number
STROM9241P-CHR

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Stromberg

Stromberg products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
