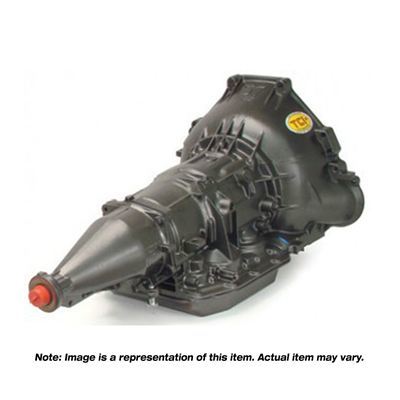

Ford C-4 Automatic Transmission Forward Shift Pattern Automatic Manual Valve Body
SKU:TCI511200
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
TCI StreetFighter transmissions are durable enough to withstand the rigors of even the toughest street machines.
Equipped with a manual/automatic valve body, most units allow you to manually shift the vehicle into each gear change or, by placing it in the drive position, remain fully automatic. In either mode, you get a race track shift that bangs through the gears and shaves time off of your ETs. When you use the manual gear selection feature, the StreetFighters upshift and downshift right when you move the lever, with no lag or governor override. When you select the normal drive position, they retain positive automatic shifts for the ease of driving you look for in an automatic transmission.
- Number of Gears:3
- Valve Body Style:Automatic/Manual
- Transmission Advertised Horsepower Rating:525
- Torque Converter Included:No
- Trans-Brake Included:No
- Lockup Compatible:No
- Transmission Pan Style:Stock
- Tailshaft Length (in.):13.000 in.
- Yoke Style:Slip-on
- Input Spline Quantity:26
- First Gear Ratio (Automatic Transmissions):2.46
- Transmission Case Material:Aluminum
- Transmission Shield Built In:No
- Flexplate Shield Built In:No
- Fluid Fill Location:Case
- Dipstick Included:No
- Quantity:Sold individually.
- Notes:Bellhousing not included. These transmissions are shipped without the speedometer driven gear or it's housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately.
