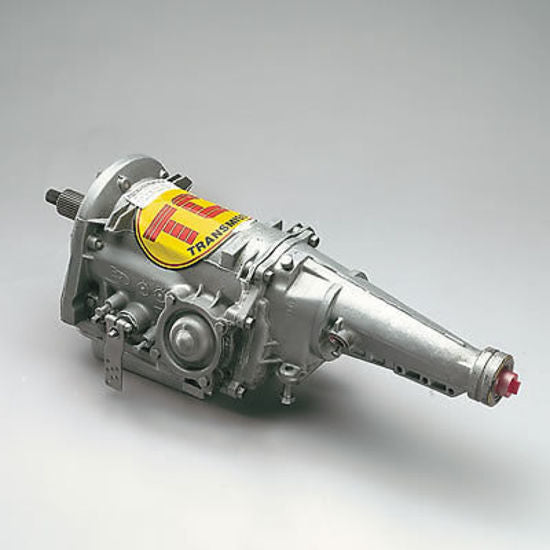

Super Streetfighter C4 Transmission Ford Windsor & Cleveland 157T

TheSuper StreetFighter™ Transmissions bridge the gap between the StreetFighter® series and full competition transmissions. This version (Ford Small Block C4 Part# 511205) is intended for normally aspirated vehicles powered by engines producingup to825 horsepower. Featuring some of the same benefits as our StreetFighter® Transmissions but with certain upgrades, the Super StreetFighter™ offers both manual and automatic shift options to give you the power and shifts you want for the strip or easy driving for the street.Like the StreetFighter units, they are equipped with 100 percent tested, manual/automatic valve bodies. That means that most units allow you to manually shift the vehicle into each gear change or, by placing it in the drive position, remain fully automatic. In either mode, you get a racetrack shift that bangs through the gears and shaves time off your ETs. When you use the manual gear selection feature, the Super StreetFighters upshift and downshift right when you move the lever, with no lag or governor override. When you select the normal drive position, the transmissions retain positive automatic shifts, for the ease of driving you look for in an automatic transmission.They also feature:• Red Eagle clutches, Kolene-treated steel plates & extra-wide powerbands where available
• Larger diameter servos, enhanced hard parts & improved lubrication system
• New sprags/roller clutches (upgraded in particular models)
• Includes a chrome-plated transmission pan with embossed TCI® logo
• Increased thrust capacity and higher line pressure for extra firm shifts & greater torque capacity with less slippage Specs:Application: Ford Windsor & Cleveland V8, Small bellhousing case (Use with 10.5" 157 Tooth flywheel)

Valve Body Style	Automatic/Manual
Trans-Brake Included	No
Lockup	No
Pan Type	Stock
Fluid Fill Location	Case
Dipstick Included	No
Tailshaft Length (in)	13.000 in.
Yoke Style	Slip-on
Input Spline Quantity	26
First Gear Ratio (Automatic Transmissions)	2.46
Case Material	Aluminum
Transmission Shield Built In	No
Flexplate Shield Built In	No
Safety Rating	Not SFI-approved
Quantity	Sold individually.
Notes	Bellhousing not included. These transmissions are shipped without the speedometer driven gear or it's housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately.

Please email sales@enginemaster.com.au with your suburb and postcode for a shipping quote!

Low stock, please contact us to ensure stock level before pressing buy it now.
