Total Seal Piston Rings TOTCR0690-35 Total Seal Moly Piston Rings 4.155"Bore 1/16"Top 1/16"2Nd 3/16"Oil

Seal Moly Piston Rings 4.155"Bore 1/16"Top 1/16"2Nd 3/16"Oil

1 2
Total Seal Piston Rings
Total Seal Piston Rings Part No. TOTCR0690-35
Sale Sold out
Taxes included. Shipping calculated at checkout.

TOTCR0690-35

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

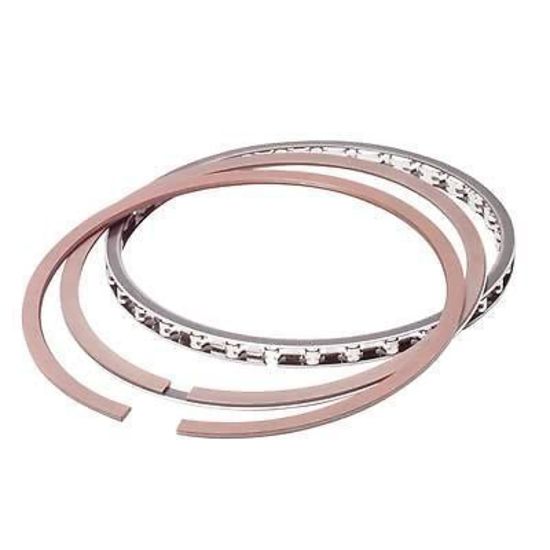

TOTAL SEAL MOLY PISTON RINGS 4.155"BORE 1/16"TOP 1/16"2ND 3/16"OIL TOTCR0690-35

Total Seal CR Classic race piston rings are built around Total Seal's ductile iron, plasma-moly coated conventional top rings. They have conventional cast iron second rings and 3-piece, standard-tension stainless steel oil rings. These ring sets are ideal for street use, race applications, and mild levels of nitrous or forced induction.


Bore (in) 4.155 in.
Bore (mm) 105.537mm
Top Ring Included Yes
Top Ring Thickness 1/16 in.
Second Ring Included Yes
Second Ring Thickness 1/16 in.
Oil Ring Included Yes
Oil Ring Thickness 3/16 in.
Oil Ring Tension Standard
Oil Ring Tension Rating 20 lb.
File Fit Yes
Gapless No
Top Ring Material Ductile iron
Top Ring Facing Material Plasma-moly
Second Ring Material Cast iron
Second Ring Facing Material Cast iron
Oil Ring Material Stainless steel
Quantity Sold as a set.

Product Information

TOTAL SEAL MOLY PISTON RINGS 4.155"BORE 1/16"TOP 1/16"2ND 3/16"OIL TOTCR0690-35

Total Seal CR Classic race piston rings are built around Total Seal's ductile iron, plasma-moly coated conventional top rings. They have conventional cast iron second rings and 3-piece, standard-tension stainless steel oil rings. These ring sets are ideal for street use, race applications, and mild levels of nitrous or forced induction.


Bore (in) 4.155 in.
Bore (mm) 105.537mm
Top Ring Included Yes
Top Ring Thickness 1/16 in.
Second Ring Included Yes
Second Ring Thickness 1/16 in.
Oil Ring Included Yes
Oil Ring Thickness 3/16 in.
Oil Ring Tension Standard
Oil Ring Tension Rating 20 lb.
File Fit Yes
Gapless No
Top Ring Material Ductile iron
Top Ring Facing Material Plasma-moly
Second Ring Material Cast iron
Second Ring Facing Material Cast iron
Oil Ring Material Stainless steel
Quantity Sold as a set.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Total Seal Piston Rings
MPN
Not provided
UPC
Not provided
Our Part Number
TOTCR0690-35

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Total Seal Piston Rings

Explore the Total Seal Piston Rings range available from Engine Master.
