Tko 600 Transmission Small Block Chev
Product Information

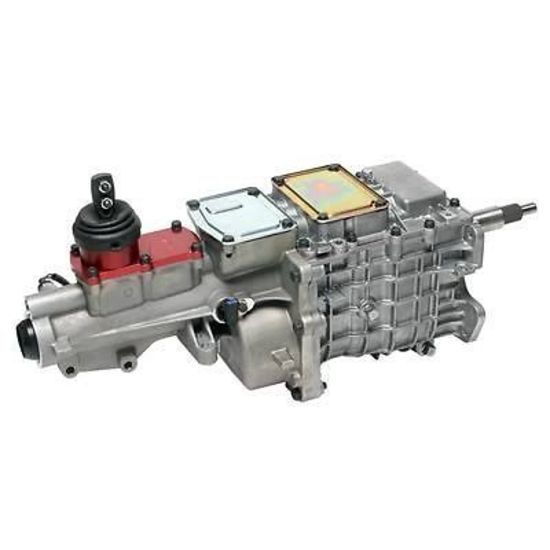

TREMEC TKO 600 TRANSMISSION SMALL BLOCK CHEV TMTCET4618You can't rely on a factory tranny to hold up in your custom, high-horsepower vehicle--put the power to the pavement with a Hurst Driveline Conversions Tremec TKO 600 transmission for unmatched durability and versatility! The gears and single-piece shafts are made from special ASTM-4615 steel for extra torque-carrying capacity (up to 600 ft.-lbs.!). The 3-rail shift system, cast iron shift forks, and billet aluminum short-throw shifter provide crisp shifting along with reduced road noise. Tremec TKO 600 transmissions are available for street and racing applications. They have eight shifter locations, three crossmember mounting configurations, electronic and mechanical speedometer pickups, and three available input shafts, all to ensure a from-the-factory fit in your GM.Specs:Application: Small Block Chev Gen I, Chev Big Block Gen VI, V, IV
| Number of Gears | Five |
| Input Shaft Diameter (in) | 1.125 in. |
| Input Spline Quantity | 26 |
| Output Shaft Spline Quantity | 31 |
| Bellhousing Included | No |
| Yoke Included | No |
| Shifter Included | Yes |
| First Gear Ratio | 2.87:1 |
| Second Gear Ratio | 1.89:1 |
| Third Gear Ratio | 1.28:1 |
| Fourth Gear Ratio | 1.00:1 |
| Fifth Gear Ratio | 0.82:1 |
| Case Material | Aluminum |
| Oil Included | No, Shipped Dry |
| Notes | Designed for electronic or mechanical speedometers. Holds 5.28 pints of fluid. 600 ft.-lbs. torque capacity. |
NOTES: WE HAVE 1 OF THESE TRANSMISSIONS LEFT, ITEM IS FOR SALE ELSEWHERE, PLEASE CONTACT US TO MAKE SURE ITEM IS IN STOCK BEFORE BIDDING!Contact max.enginemaster@live.com.au with your full address for a shipping quote.
