Turbonetics

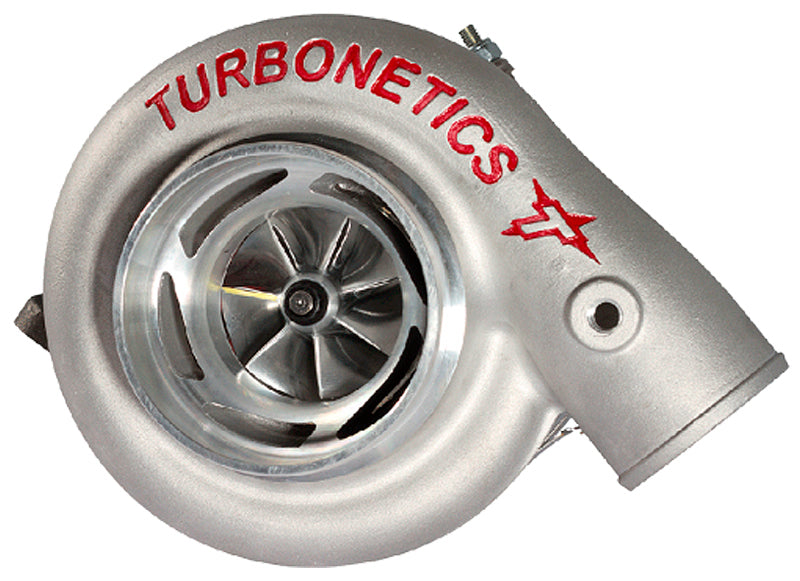

Turbonetics TNT11815-BB Tnx-20 Series Turbocharger 67/52 450 HP w/ T4B Comp Housing T25 Internal Gate. Choose .65 Or .85 A/R Turbine Housing

Turbonetics TNT11815-BB Tnx-20 Series Turbocharger 67/52 450 HP w/ T4B Comp Housing T25 Internal Gate. Choose .65 Or .85 A/R Turbine Housing

TNT11815-BB
$2,877.40 AUD
$2,877.40 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
 More payment options

Specifications:

Model: TNX-20
Horsepower: 450
Comp Housing: T4B
Comp Wheel: 67/52mm
Turbine Wheel: 54/48mm
Turbine Housing: .65 or .85 a/r
Wastegate: T25 Internal Gate

Select Turbine Housing Option:
T25 .65 A/R: TNT11821-1
T25 .85 A/R: TNT11822-1

Turbonetics is pleased to present the TNX Series Turbocharger. The newest addition to the line-up. A clean sheet design that packs cutting edge turbocharger technology into a compact package to get the most from your engine.

Standard Turbocharger Features:

  • New CFD and FEA designed high-efficiency compressor and turbine wheels
  • Ultra-low-frict ion dual ceramic ball bearing or low-friction journal bearing
  • Water-cooled for extended bearing and seal life
  • Lightweight, compact outline, engineered and built from the ground up to provide maximum performance for smaller displacement high-performance applications
  • Dual oil seals at each end of the shaft
  • Available in popular industry standard T25 and T3 turbine inlets with V-Band discharge. T4 turbine inlet coming soon
  • Internally wastegated turbine housing with actuator

Operating Range Enhancement Ported Shroud Available On Select Models

Turbonetics TNX Compressor and Turbine Stages are designed using advanced Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) tools to optimize performance and durability. This ensures high efficiency over a broad operating range and reliability under the most demanding conditions. Our Compressor Wheels and Housings are designed for high air flow and wide operating range to maximize horsepower and drivability. Our turbines are designed for low inertia and high exhaust temperatures for fast boost response and longevity under extreme operation.



Manufacturer Part Number:
