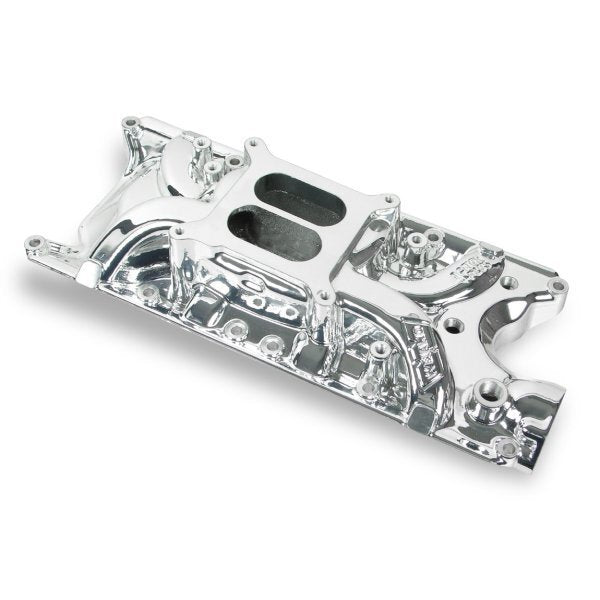

Weiand WM8124C SB Ford Street Warrior Intake Manifold 289-302Ci Windsor Everbright Finish

Looking for the ultimate in high performance street intakes? A lot has changed in the performance world since the time many of the Manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for Manifolds to support these larger displacements. Weiand recognised this and has developed a new line of Street Warrior Manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines.

Dyno testing of the new Weiand 8124 found an additional 14 peak HP and 13lb/ft torque over brand E - p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 CFM Carb & 1-5/8" headers.

Installation Notes: Hasadditional vacuum tap off of runner for brake boosters/AC. Recommended Fel-Pro gasket part number 1250. Holley Street Avenger Carb series in 570 or 670 CFM & Universal Carburettor Installation Kit, P/N 20-124 are recommended accessories.

Features:

• Low Rise Dual Plane Design builds maximum torque for street performance engines
• Square Bore Carburettor Mounting Flange
• Permanent mould casting process for lighter, smoother & better looks
• Exhaust crossover for improved street drivability
• Power band: Idle-5500 RPM
• Height: Front 3.82", Rear 4.75"
• Port Size: 1.82" height 1.02" width
