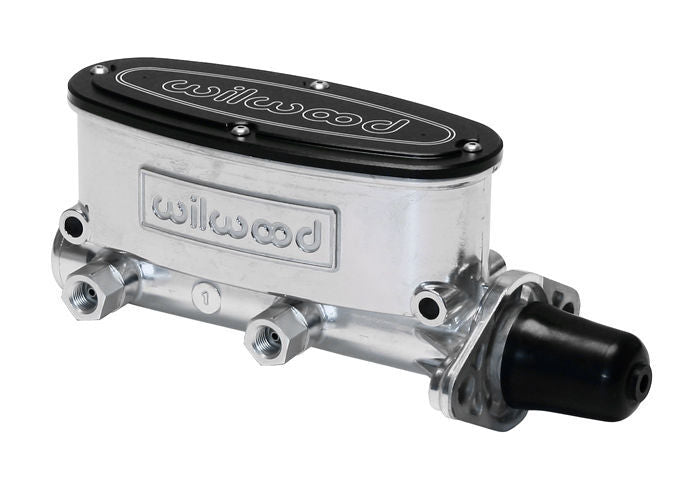

WILWOOD POLISHED TANDEM MASTER CYLINDER 1-1/8" BORE WB260-8556-P
SKU:WIL260-8556-P
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

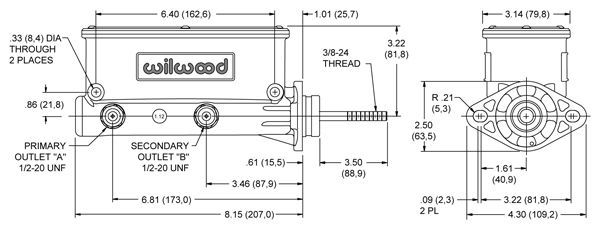

Wilwood's tandem chamber master cylinders are fully machined from a High-pressure die casting of a premium alloy, it incorporates slotted mounting flange to accommodate mount centers between 3.22" to 3.40" and also features side-hole mounts on 6.40" centers. Master cylinder is has full separation between the front and rear chambers . Dual outlets allow for right or left hand plumbing based on mount location. Offers a total piston stroke of 1.10" and a 2:1 volume ratio between the primary and secondary chambers
Specs:
| Master Cylinder Material | Alloy |
| Master Cylinder Finish | Natural |
| Master Cylinder Bore Size | 1.120 in. |
| Master Cylinder Stroke | 1.100 in. |
| Bowl Design | Dual |
| Mounting Hole Quantity | 2 holes |
| Mounting Flange Center to Center Distance (in) | 3.220-3.400 in. |
| Remote Reservoir | No |
| Reservoir Included | Yes |
| Reservoir Material | Alloy |
| Reservoir Finish | Polished |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Pushrod Included | No |
| Mounting Brackets Included | No |
| Hardware Included | No |
| Quantity | Sold individually. |
