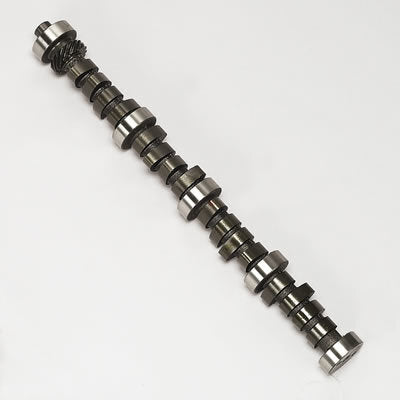

COMP Cams 31-246-3 Xtreme Energy 230/236 Hydraulic Flat Cam for Ford 221-302

31-246-3 Xtreme Energy 230/236 Hydraulic Flat Cam for Ford 221-302

Name: COMP Cams 31-246-3 Xtreme Energy 230/236 Hydraulic Flat Cam for Ford 221-302
Brand: COMP Cams
SKU: CO31-246-3
Price: 483.75 AUD
Availability: InStock

1 2

COMP Cams

COMP Cams Part No. CO31-246-3

$483.75 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:CO31-246-3

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

Xtreme Energy 230/236 Hydraulic Flat Tappet Cam for Ford 221-302. Very strong torque and throttle response. 2500+ Stall.

Product Information

Xtreme Energy 230/236 Hydraulic Flat Tappet Cam for Ford 221-302. Very strong torque and throttle response. 2500+ Stall.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584030928
Our Part Number: CO31-246-3

Lobe Separation: 110
Intake Valve Lift: 0.52
Exhaust Valve Lift: 0.523
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Cam and Lifter Kit Upgrade: CL31-246-3
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK31-246-3
K-Kit Upgrade: K31-246-3
Engine Family: Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995)
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Amazon ASIN: B000CESFM4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: XE274H
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE274H
Basic Operating RPM Range: 1,800-6,000
Intake Duration at .050 Inch Lift: 230
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 274
Advertised Exhaust Duration: 286
Rpm operating range 1800 - 6000
Duration advertised Inlet 274Â°, Exh 286Â°
Duration advertised @ .050" Inlet 230Â°, Exh 236Â°
Valve lift with 1.6 rocker Inlet .520", Exh 523"
Lobe separation angle 110Â°

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
